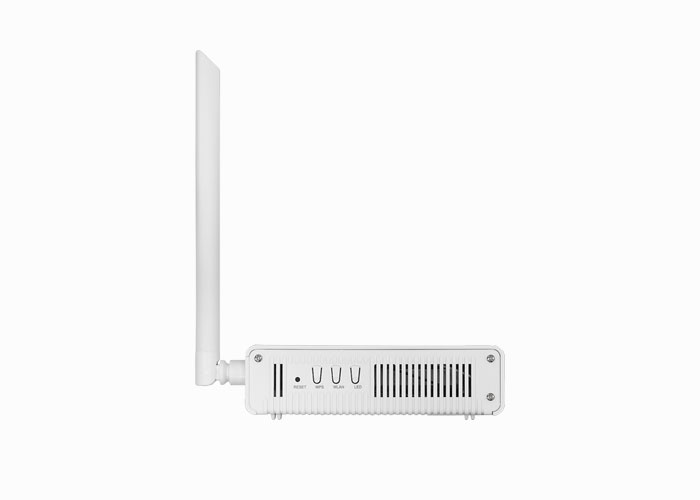

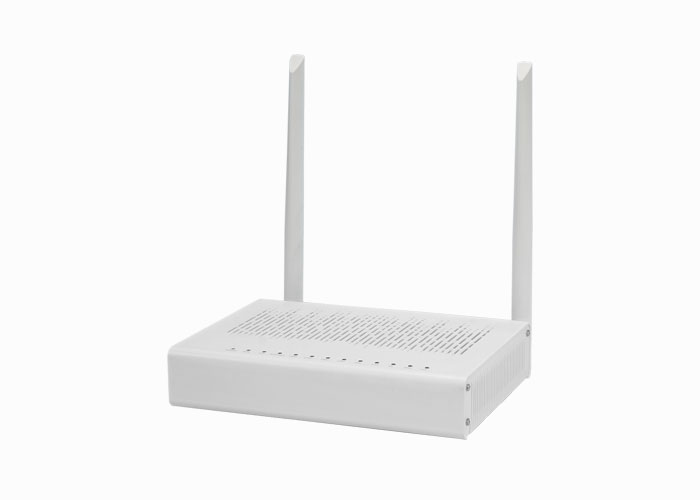

GRG-4296u

GPON VoIP Gateway AX3000
PON | 802.11ax@5GHz + 802.11ax@2.4GHz | 4x GE LAN | VoIP | USB

  • Overview

    Description:

    GRG-4296u is a highly integrated GPON access device. It offers high-performance Data, Voice and Video services for individual users, SOHO (small office or home office), small businesses, etc

    GRG-4296u complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink on the network side, and provides four high-speed GE ports, one FXS port for internet calling, dual-band Wi-Fi 6 (2T2R 802.11ax@2.4GHz and 2T2R 802.11ax@2.4GHz). The two wireless bands are separated into two dedicated Wi-Fi networks, supporting more end-user devices while reducing signal interference. Furthermore, there is a USB 2.0 host interface on the user side.

    GRG-4296u GRG-4296u

    Features

    KEY FEATURES

    • OFDMA and MU-MIMO: Supports both up-link and down-link, allowing efficient data transmission for more devices at the same time.
    • Wi-Fi 6:2.4GHz wireless 802.11ax compatible 11b/g/n, up to 600Mbps PHY rate
      5GHz wireless 802.11ax compatible 11a/n/ac, up to 1200Mbps PHY rate
    • 160MHz & 1024 QAM: Wider band and high definition offer high throughput capability.
    • 1 x USB host provides high speed access to USB devices such as printer server, 3G dongle, HDD, and has future DLNA connectivity
    • Remote Management: TR-069 standard data model for ISP remote control

    Specifications

    SPECIFICATIONS

    HARDWARE

    Flash

    • 256MB Nand Flash

    SDRAM

    • 512MB DDR

    Interface

    • WAN:
      1x GPON port (SC/APC);
      Data Rate: Downstream: up to 2.488Gbps;
      Upstream: up to 1.244Gbps;
      Receiving wavelength: 1,490 nm;
      Transmitting wavelength: 1,310 nm;
      Optical Range: Class B
    • LAN:
      4x 10/100/1000 Base-T MDI/MDIX RJ-45 ports
      Compliant with the following standards:
      1. IEEE 802.3/802.3u
      2. Hardware-based 10/100/1000, full/half, flow control auto-negotiation
      3. Non-blocking wire speed reception and transmission
      4.Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control
    • External antennas;
      2.4G IEEE 802.11ax, backward compatible with 802.11b/g/n;
      Up to 600Mbps PHY rate
      5G IEEE 802.11ax, backward Compatible with 802.11a/n/ac;
      Up to 2400Mbps PHY rate
    • FXS: 1x FXS
    • USB: 1x USB 2.0 Host (3.0 optional)

    PACKAGE CONTENTS

    • GPON ONT (GRG-4296u)
    • Power adapter 12VDC/1.5A

    ENVIRONMENT

    Physical & Environmental

    • Operating Temperature: 0 ºC to 40 ºC
    • Operating Humidity: 10% ~ 95% (non-condensing)

    Resources

    Product Sheet



    DS_GRG-4296u_V3.1.pdf
