Key Features

Improved xDSL Link Rate Performance
Supports the latest G.vector and G.inp technologies to mitigate crosstalk and impulse noise resulting in greater throughput.

Premium Performance for Video Streaming
WiFi 6 (11ax) provides superior performance and coverage.

Connect More Devices Simultaneously
WiFi 6 is ideal for simultaneously running multiple high-bandwidth devices.

TR-069 Remote Management for Reduced Truck Rolls
Easily setup, manage, troubleshoot and control the CPE remotely.

Specifications

SPECIFICATIONS

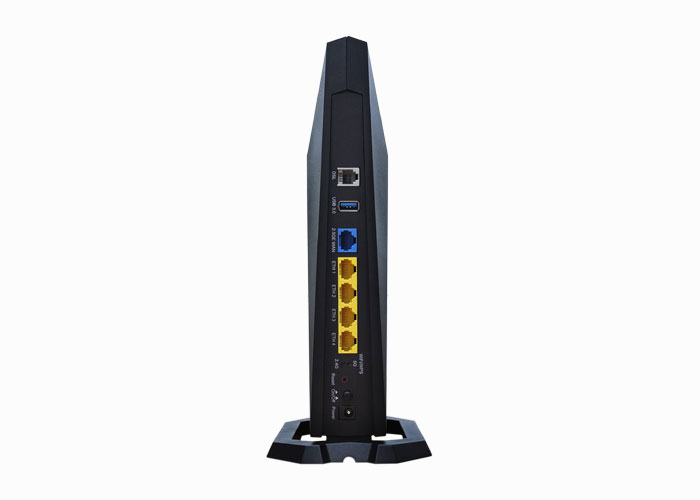

Hardware

• 1 x RJ-14 port for VDSL2 (35b)/ADSL2+ (Annex A) Bonding and Single line
• 4 x GbE RJ-45 LAN ports (10/100/1000 Base-T auto-sense)
• 1 x 2.5GbE RJ-45 WAN port (10/100/1000/2500 NBase-T)
• 1 x Reset button
• 2 x WPS & WiFi On/Off button (2.4G and 5G)
• 4 x WiFi Antennas (4 dual band antenna)
• 1 x Power switch
• 1 x USB 3.0 Host

VDSL Features

• Supports VDSL profiles, 8a/b/c/d, 12a/b, 17a, 30a and 35b
• Support VDSL band plan, Annex A, 997, 998
• Packet Transfer Mode (PTM) up to 35b bonding
• US0 support
• Seamless Rate Adaption (SRA)
• PhyR support
• G.INP support
• G.vector support

ADSL Features

• T1.413, G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2) andG.992.5 (ADSL2+)
• Annexes A, L (Reach Extended ADSL2), and M (Enhanced Upstream Speed)
• Seamless Rate Adaption (SRA)
• Support VC-based and LLC-based multiplexing
• Support up to 16 PVCs
• ATM shaping: UBR/CBR/VBR-rt//VBR-nrt
• G.INP support

2.5Gigabit WAN

• Up to AX6000Mbps PHY Rate
• Up to 1W Ultra High TX Power
• IEEE 802.11ax, 2.4GHz, 4T4R, backward compatible with 802.11n/g/b
• IEEE 802.11ax, 5GHz, 4T4R, backward compatible with 802.11ac/n/a
• WPA/WPA2/WPA3-PSK with TKIP & AES security type
• Multiple SSID
• MAC address filtering
• 802.1x radius supported
• Supports entire 5GHz band including Dynamic Frequency Selection (DFS) channels
• Supports band steering
• Supports beamforming

Gigabit LAN

• 10/100/1000 Base T, IEEE 802.3, IEEE 802.3u IEEE 802.3ab
• Support MDI/MDIX

2.5Gigabit WAN

• IEEE 802.3bz
• 2.5G BASE-T, auto-sense
• Support MDI/MDX

Networking Protocols

• MAP-T and MAP-E support
• RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Router, RFC 2516 (PPPoE); RFC 1577 (IPoA)
• IPoE, PPPoE, Bridge, IPoA, PPPoA
• PPPoE pass-through, Multiple PPPoE sessions on single WAN interface
• PPPoE Filtering of non-PPPoE packets between WAN and LAN
• Transparent bridging between all LAN and WAN interfaces
• 802.1p/802.1q VLAN Support, DSCP
• Spanning Tree Algorithm
• IGMP Proxy V1/V2/V3, IGMP Snooping V1/V2/V3, Fast leave
• Static route, RIP v1/v2, ARP, RARP, SNTP
• DHCP Server/Client/Relay
• DNS Proxy/Relay, Dynamic DNS,UPnP, DLNA
• Internet Printing Protocol
• IPv6 dual stack, IPv6 Rapid Deployment (6RD)

Management

• TR-069/TR-181/TR-104/TR-111/TR-143, SNMP, Telnet, Web-based management, Configuration backup and restoration
• Fine Point’s TR-069 enhanced functionality is available on this model with a firmware upgrade
• NISC USS TR-069 enhanced functionality is available on this model with a firmware upgrade
• Software upgrade via HTTP, HTTPS, TFTP or FTP

Firewall/Filtering

• Stateful Packet Inspection Firewall
• Stateless Packet Filter
• Parental Control
• URI/URL Filtering
• Denial of Service (DOS): ARP attacks, Ping attacks, Ping of Death, LAND,SYNC, Smurf, Unreachable, Teardrop
• Port Scan Detection and Protection
• TCP/IP/Port/interface filtering rules Support both incoming and outgoing filtering

NAT/PAT

• Supports One to One, Many to One, Many to Many (Overload), Many to Many (No Overload) NAT
• NAT Loopback
• Port Triggering
• Port Forwarding (Virtual Server)
• Symmetric Port-Overloading NAT, Full-Cone NAT
• DMZ Host
• VPN Pass Through (PPTP, L2TP, IPSec)

USB

• File Sharing (DLNA & Samba)
• Print Server

ENVIRONMENT

Operating Temperature: 32~104°F (0~40°C)

Relative Humidity: 5~95% non-condensing

Note: Specifications are subject to change without notice.
