VR-3071v2
Home Gateway
Multi-DSL | Giga Ethernet Port | WiFi6 | TR-069
-
Overview
Description:

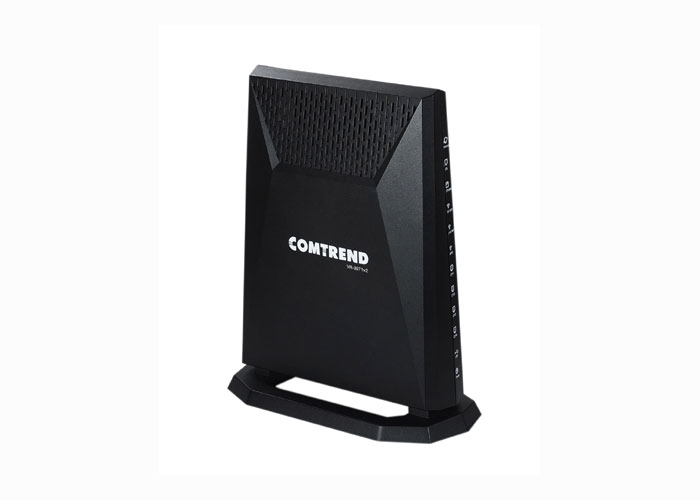

VR-3071v2 is a Multi-DSL Ethernet gateway that provides both ADSL and 35b VDSL, with 5 Giga Ethernet ports and an 802.11ax Wireless solution on frequency band 2.4GHz (2T2R) & 5GHz (4T4R). The Wi-Fi 6 device provides the best end-user experience with the fastest Wi-Fi speeds, up to 4-times greater network capacity than Wi-Fi 5. Additionally, the VR-3071v2 has 1*USB3.0 host port which provides high speed access to USB devices such as printer server, HDD, and has future DLNA connectivity.
The Core design concept of VR-3071v2 is to enhance user experience on high speed applications by its high power wireless design, providing better coverage and stable WiFi services. VR-3071v2 allows easy central management (ACS) by following TR-069.
Features
Key Features
- Future-Proof with A/VDSL: Offers VDSL2 with ADSL2+ fallback for flexible future transitional deployments.
- Increased Efficiency and Optimized Coverage: WiFi 6 is the latest WiFi technology utilizing OFDMA, MU-MIMO, 1024QAM and more for an enhanced WiFi experience.
- Use More Devices: WiFi 6 is ideal for simultaneously running multiple high-bandwidth devices.
- Supervectoring: Part of next-generation broadband technologies - with more frequency ranges than ever before, you can achieve even greater bandwidth (up to 300 Mbit/s download, up to 50 Mbit/s upload).
- Remote Management for Reduced Truck Rolls: Supports TR-069 to easily setup, manage, troubleshoot and control the CPE remotely.
Specifications
Specifications
SPECIFICATIONS

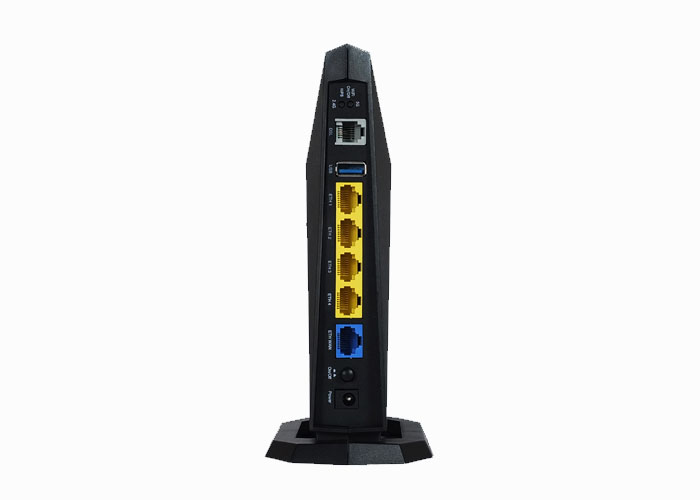

Hardware
- RJ-11 X1 for VDSL2 (35b)/ADSL2+ (Annex A)
- RJ-45 X 4 for GELAN
- RJ-45 X 1 for GEWAN
- IEEE 802.11ax, 2.4GHz, 2T2R
- IEEE802.11ax, 5GHz, 4T4R
- USB 3.0 X 1
- Reset button X 1
- 2.4G WiFi on/off, WPS button X 1
- 5G WiFi on/off, WPS button X 1
- Internal Antenna X 4
- Power switch X 1
ADSL
- G.994
- G.992.1 (G.dmt) Annex A
- G.992.2 (G.lite) Annex A
- ANSI T1.413
- G.992.3 (ADSL2) Annex A
- G.992.5 (ADSL2+) Annex A
VDSL
- G.993.2(VDSL2) 35b, 17a, 12a, 12b, 8a, 8b, 8c, 8d
- G.993.5 (G.vector)
- G.998.4 (G.INP)
- SRA (Seamless Rate Adaptation)
- UPBO (Upstream Power Back-off)
Ethernet
- IEEE 802.3, IEEE 802.3u IEEE 802.3ab
- 10/100 /1000 BASE-T, auto-sense
- Supports MDI/MDX
Networking Protocols
- RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Router, RFC 2516 (PPPoE); RFC 1577 (IPoA)
- PPPoE Pass-Through, Multiple PPPoE Sessions on Single WAN Interface
- PPPoE Filtering of Non-PPPoE Packets Between WAN and LAN
- Transparent Bridging Between all LAN and WAN Interfaces
- 802.1p/802.1q VLAN, DSCP
- IGMP Proxy V1/V2/V3, IGMP Snooping V1/V2/V3, Fast leave
- Static route, RIP v1/v2, ARP, RARP, SNTP
- DHCP Server/Client/Relay, DNS Proxy/ Relay, Dynamic DNS, UPnP, DLNA
- IPv6 Dual Stack, IPV6 Rapid Deployment (6RD)
Management
- TR-069/TR-104/TR-111/TR-181, SNMP, Telnet, Web-Based Management, Configuration Backup and Restoration
- Software Upgrade via HTTP, TFTP Server, or FTP Server
Firewall/Filtering
- Stateful Packet Inspection Firewall
- Stateless Packet Filter
- URI/URL Filtering
NAT/NAPT
- Port Triggering
- Port Forwarding (Virtual Server)
- Symmetric port-overloading NAT, Full-Cone NAT
- DMZ host
- VPN Pass Through (PPTP, L2TP, IPSec)
Wireless
- IEEE 802.11ax, 2.4GHz, 2T2R
Backward compatible with 802.11n/g/b
2412～2472 MHz - IEEE 802.11ax,5GHz, 4T4R,
- Backward compatible with 802.11ac/n/a
- U-NII-1 ( 5150～5250 MHz )
- U-NII-2a ( 5250～5350 MHz ) optional
- U-NII-2c/2e ( 5470～5725 MHz ) optional
- U-NII-3 ( 5725～5825 MHz )
- WPA/WPA-PSK, WPA2/WPA2-PSK with TKIP & AES Security Type
- Multiple SSID
- MAC Address Filtering
Power Supply
- External power adapter: 12VDC/ 1.5
ENVIRONMENT
Operating Temperature: 0°C ~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -25°C ~65°C (-23°F ~149°F)
Storage Humidity: 5%~90% non-condensing
