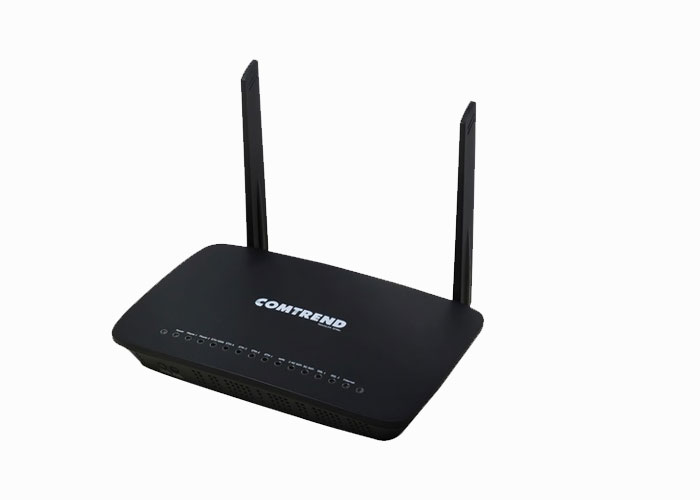

VR-3060u

xDSL/Eth Gateway AC1600
Multi-DSL | Giga Ethernet Port | 802.11ac Wave 2 | TR-069

  • Overview

    Description:

    VR-3060u is a Multi-DSL gateway that not only provides both ADSL and VDSL but also 5 integrated Giga Ethernet ports, with WiFi operating on WLAN 802.11n 2.4GHz frequency band and 802.11ac 5GHz Frequency band. The two wireless bands are separated in two dedicated Wi-Fi networks, supporting more end-user devices while reducing signal interference. VR-3060u is designed for high speed applications and is suitable for triple play services by wired or wireless protocol.

    VR-3060u has 1*USB3.0 host port which provides high speed access to USB devices such as printer server, 3G dongle, HDD, and has future DLNA connectivity. In addition, VR-3060u follows TR-069 making central (ACS) management easy.

    VR-3060u VR-3060u

    Features

    Key Features

    • Future-Proof with A/VDSL: Offers VDSL2 with ADSL2+ fallback for flexible future transitional deployments.
    • Provides Optimized Performance: Supports the latest G.vector & G.inp technologies to work together to mitigate crosstalk and impulse noise resulting in greater throughput.
    • Supervectoring: Part of next-generation broadband technologies - with more frequency ranges than ever before, you can achieve even greater bandwidth (up to 300 Mbit/s download, up to 50 Mbit/s upload).
    • Maximizes Video Streaming: Equipped with 802.11ac Wave 2 technology and MU-MIMO wireless connectivity to enhance video experience.
    • Remote Management for Reduced Truck Rolls: Supports TR-069 to easily setup, manage, troubleshoot and control the CPE remotely.

    Specifications

    Specifications

    SPECIFICATIONS

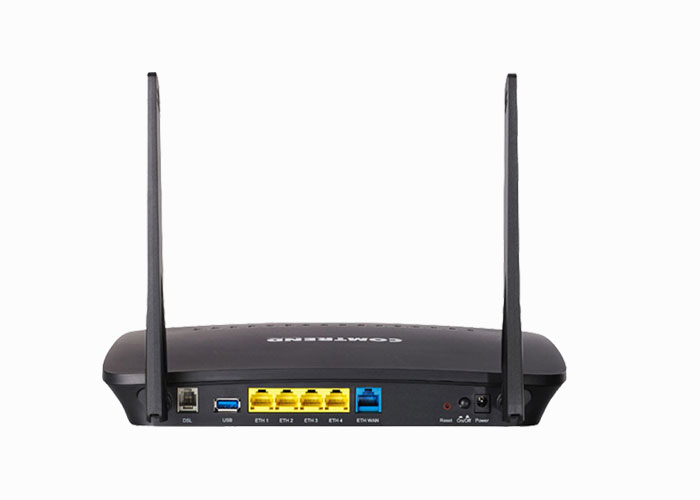

    Hardware

    • RJ-11 X1 for ADSL2+ / VDSL2, 17a
    • RJ-45 X 4 for LAN
    • RJ-45 X 1 for WAN
    • IEEE 802.11n 2T2R
    • IEEE802.11ac 3T3R
    • Reset Button X 1,
    • WPS & Wi-Fi On/Off button X 2
    • Internal Wi-Fi Antennas x 1
    • External Wi-Fi Antennas x 2
    • Power switch X 1
    • USB 3.0 Host X 1

    WAN

    • Complies with ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ANSI T1.413 Issue 2, AnnexM
    • ADSL2+: Downstream : 24 Mbps Upstream : 1.3 Mbps
    • Complies with G.993.2 (supporting profile 8a, 8b, 8c, 8d, 12a, 12b, 17a)
    • VDSL2: Downstream : 100Mbps Upstream : 60Mbps
    • 10/100/1000 Base T, IEEE 802.3, IEEE 802.3u IEEE 802.3ab

    LAN

    • IEEE 802.3, IEEE 802.3u IEEE 802.3ab
    • 10/100 /1000 BaseT auto-sense
    • Support MDI/MDX

    WLAN

    • IEEE 802.11n 2T2R, backward compatible with 802.11g/b
    • 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
    • 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
    • Up to 300 Mbps data rate
      MAC address filtering, WEP, WPA, IEEE 802.1x
    • IEEE 802.11ac 3T3R, backward compatible with 802.11n/a

    ATM Attributes

    • RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE); RFC 1577 (IPoA)
    • Supports16 PVCs
    • AAL5
    • UBR/CBR/VBR
    • UNI 3.1/4.0
    • OAM F4/F5

    Networking Protocols

    • RFC 1483/2684 VC-MUX, LLC/SNAP encapsulations for bridged or routed packet
    • IPoEoA (MER), IPoA, PPPoA, IPoE, PPPoE
    • PPPoE pass-through, Multiple PPPoE sessions on single WAN interface
    • PPPoE filtering of non-PPPoE packets between WAN and LAN
    • Transparent bridging between all LAN and WAN interfaces
    • 802.1p/802.1q VLAN support
    • Spanning Tree Algorithm
    • IGMP Proxy V1/V2/V3, IGMP Snooping V1/V2/V3, Fast leave
    • Static route, RIP v1/v2, ARP, RARP, SNTP
    • DHCP Server/Client/Relay
    • DNS Proxy/Relay, Dynamic DNS
    • Internet Printing Protocol
    • UPnP
    • IPv6 subset

    Firewall/Filtering

    • Stateful Packet Inspection Firewall
    • Stateless Packet Filter
    • Day-time Parental Control
    • URI/URL filtering
    • Denial of Service (DOS): ARP attacks, Ping attacks, Ping of Death, LAND,SYNC, Smurf, Unreachable, Teardrop
    • Port Scan Detection and Protection
    • TCP/IP/Port/interface filtering rules Support both incoming and outgoing filtering

    NAT/NAPT

    • Support One to One, Many to One, Many to Many (Overload), Many to Many (No Overload) NAT
    • NAT Loopback
    • Port Triggering
    • Port Forwarding (Virtual Server)
    • Symmetric port-overloading NAT, Full-Cone NAT
    • DMZ host
    • VPN Pass Through (PPTP, L2TP, IPSec)

    Management

    • TR-069/TR-098/TR-104/TR-111, SNMP, Telnet, Web-based management, Configuration backup and restoration
    • Software upgrade via HTTP, TFTP server, or FTP server

    Routing Functions

    • Static route, RIP, and RIPv2, NAT/PAT, DHCP Server/ DHCP Relay, DNS Proxy, ARP

    ENVIRONMENT

    Operating Temperature: 0~ 40 degrees Celsius

    Operating Humidity: 5 ~ 95% (non-condensing)
