GRG-4350u

XGS-PON VoIP Gateway BE7200
XGS-PON | Dual-Band Wi-Fi 7 | 10 Gigabit Ethernet | VoIP

  • Overview

    Description:

    Comtrend’s GRG-4350u is designed as a XGS-PON ONT Gateway with capability to provide strong and stable wireless connectivity by its industrial leading Wi-Fi 7 configuration, Dual-Band (2.4GHz 4T4R, 5GHz 5T5R) GRG-4350u can fulfill most of demands for family use, with one XSG-PON port as input of the internet source; one 10 Gigabit Ethernet port and four Gigabit Ethernet LAN, two RJ-11 VoIP ports and Filogic wireless solution of Mediatek.




    GRG-4350u GRG-4350u
    IEEE Standard Max Data Rate Bands Bandwidth Modulation MIMO
    802.11be 4G bps 2.4GHz, 5GHz, 6GHz up to 320 MHz 4096-QAM
    OFDMA    		 16 x 16 UL/DL
    MU-MIMO

    Features

    Key Features

    • XGS-PON: Symmetric 10G/10G UL/DL provides high speed fiber to the home services.
    • Wi-Fi 7 (802.11BE): Dual-Band Wi-Fi 7, industrial leading Wi-Fi configuration.
    • 10 Gigabit Ethernet LAN port: Capable to provide high-speed connectivity.
    • MLO: As most current APs and Stations incorporate dual-band or tri-band capabilities.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    Specifications

    HARDWARE SPECIFICATIONS

    Main CPU: AN7581PT

    Wi-Fi Chipset: Filogic 660

    Flash: NAND Flash: 256 Byte

    RAM: DDR4 4G Bits

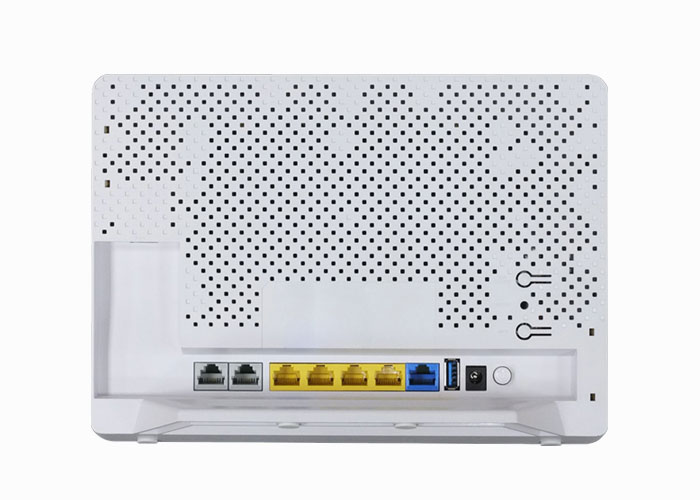

    Interfaces:
    XGS-PON (SC/APC) x 1
    10 Gigabit Ethernet LAN x 1, Gigabit Ethernet LAN x 4
    VoIP (FXS) x 2

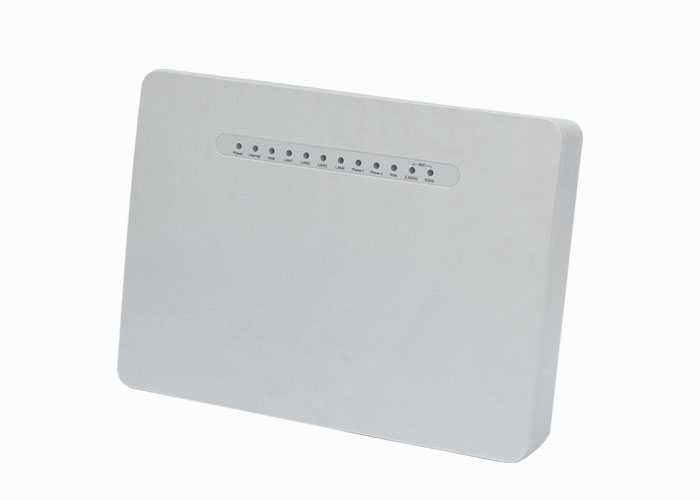

    LED Indicators:
    Power, Internet, PON, 10GE, ETH1, ETH2, ETH3, ETH4, 2.4G Wi-Fi, 5G Wi-Fi Phone 1, Phone 2

    Antenna:
    Dual-Band Antenna x 5
    Single Band Antenna x 1

    Buttons: Power Switch, Wi-Fi On/Off, WPS, Reset button

    USB: USB 3.0 x 1

    Power Input: 12DVC/3A, 100-240ACV, 50/60Hz

    RF SPECIFICATIONS

    Wireless Standard: 802.11be/ax/ac/n/g/b/a

    Frequency Band: 2.4GHz, 5GHz

    ADVANCED FEATURES

    Wi-Fi Features
    320MHz bandwidth, 4096-QAM, MLO, MUR

    Wi-Fi Security
    WPA, WPA2, WPA3

    Management Function
    TR-069 (TR-181, TR-369), HTTP, HTTPS, TELNET, SSH

    ENVIRONMENT

    Temperature
    Operating: 0°C ~ 40°C (32°F ~104°F)
    Storage: -40°C ~ 70°C (-40°F ~158°F)

    Humidity (Non-condensing)
    Operating: 10 ~ 90% RH, non-condensing
    Storage: 5 ~ 90% RH, non-condensing

    Resources

    Product Sheet



    DS_GRG-4350u_R3.2_20231107.pdf
