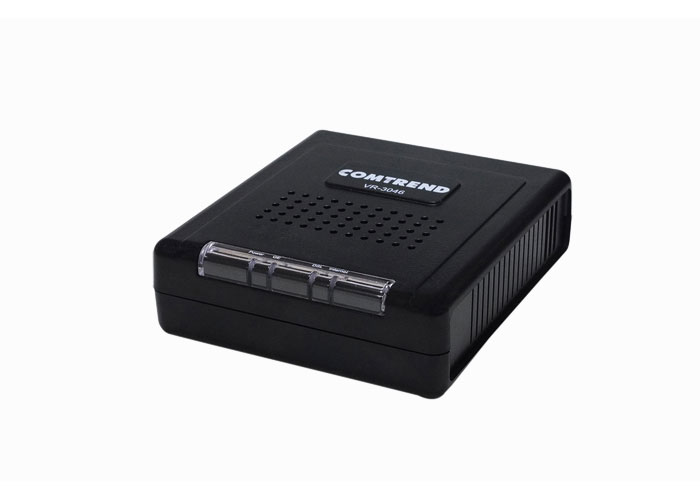

VR-3046

xDSL Gateway
A / VDSL | Gigabit Ethernet

  • Overview

    Description:

    Comtrend VR-3046 is designed as a multi-DSL gateway that provides wired access for high-bandwidth applications in the home or office. It includes one Giga Ethernet port and supports ADSL2/2+ and VDSL2 connections with automatic fallback to ADSL2+.

    The VR-3046 supports routed or bridged mode and up to profile 35b in VDSL2 mode for 100Mbps upstream and 300Mbps downstream high-speed bandwidth. On longer loops, VDSL2 35b falls back to VDSL2 17a vectoring performance. The device can satisfy online gaming, video streaming, and real-time audio applications. Furthermore, installation is simple and straightforward.

    VR-3046

    Features

    KEY FEATURES

    • Future-Proof with A/VDSL: Offers VDSL2 with ADSL2+ fallback for flexible future transitional deployments.
    • Provides Optimized Performance: Supports the latest G.vector & G.inp technologies to work together to mitigate crosstalk and impulse noise resulting in greater throughput.
    • Supervectoring: Part of next-generation broadband technologies - with more frequency ranges than ever before, you can achieve even greater bandwidth (up to 300 Mbit/s download, up to 50 Mbit/s upload).
    • Quality of Service: Classifies, controls and prioritizes diverse traffic types, for pristine video, toll-quality voice, and error free data transmissions.
    • Remote Management for Reduced Truck Rolls: Supports TR-069 to easily setup, manage, troubleshoot and control the CPE remotely.

    Specifications

    SPECIFICATIONS

    HARDWARE SPECIFICATIONS

    Flash

    • NAND Flash: 128M Byte

    RAM

    • DDR2: 128M Byte

    Interfaces

    • A / VDSL (35b) x 1
    • Gigabit Ethernet LAN x 1

    LED Indicators

    • Power, GE, DSL, Internet

    Buttons

    • Power Switch, Reset button

    Power Input

    • 12DVC/1A, 100-240ACV, 50/60Hz

    ADVANCED FEATURES

    Safe & Secure Connections

    • Stateful Firewall (with DoS protection) and NAT/PAT

    Management Function

    • TR-069, TR-181(in future), TR-369(in future), HTTP, HTTPS, TELNET, SSH

    ENVIRONMENT

    Temperature

    Operating: 0°C ~ 40°C (32°F ~104°F)
    Storage: -40°C ~ 70°C (-40°F ~158°F)

    Humidity (Non-condensing)

    Operating: 10 ~ 90% RH, non-condensing
    Storage: 5 ~ 90% RH, non-condensing

    Resources

    Product Sheet



    DS_VR-3046_V3.2.pdf
