Description:

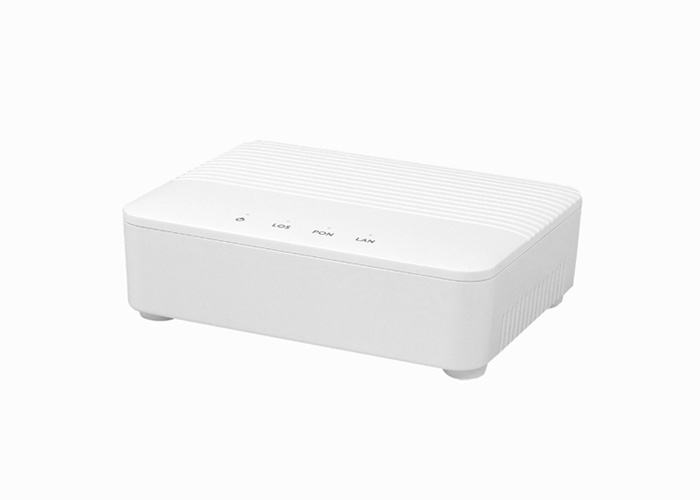

GRG-4284 is a next-generation Gigabit Passive Optical Network (GPON) ONT, ideal for Fiber to The
Home solution designed for advanced triple-play deployments. It’s an incredibly robust device allowing
users to access a high-speed internet connection via its GPON port and share it with a Gigabit Ethernet
port.
The indoor models of Comtrend’s GPON product line provide a lower cost and small package which
contains many features including QoS, Data Bridge and multicast video support.
Compliant with standard OMCI definition, GRG-4284 is manageable from the remote side and supports
the full range FCAPS functions including supervision, monitoring and maintenance.
Specifications
HARDWARE SPECIFICATIONS
Flash: NOR Flash: 16M Byte
RAM: DDR: 64M Byte

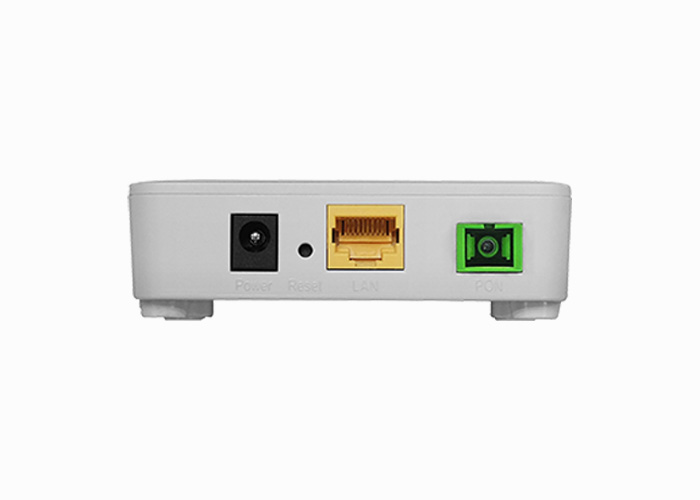

Interfaces:
GPON (SC/APC) x 1
Gigabit Ethernet LAN x 1
LED Indicators: Power, LOS, PON, LAN
Buttons: Reset button
Power Input: 12DVC/0.5A
SOFTWARE
Quality of Service: WMM, Bandwidth Control
Port Forwarding: L2/L3 forwarding, L3 NAPT
VPN: 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Access Control: Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
Management: Access Control, Local Management, Remote Management
REMOTE MANAGEMENT
Protocol:
OMCI, HTTP, HTTPS, TELNET, SSH
CETIFICATIONS
CE, RoHS
PACKAGE CONTENTS
GPON ONT (GRG-4284) x 1
Power adapter 12DVC/0.5A, 100-240ACV, 50/60Hz, 1.5m x 1
ENVIRONMENT
Temperature
Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -40°C ~ 70°C (-40°F ~158°F)
Humidity (Non-condensing)
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 90% RH, non-condensing
