GCA-6010

G.hn Wave2 over Coax Adapter
G.hn 2Gbps | 200MHz | Built-in Diplexer

  • Overview

    Description:

    GCA-6010 is designed as CPE (customer premises equipment) for Ethernet Adapter over coax network home networking, as well as for MDU application over a shared coaxial network. GCA-6010 fully complies with ITU-T G.hn standards for a coaxial interface and supports a 200MHz operating band and built-in diplexer for coexistence of CATV/UHF/VHF services.

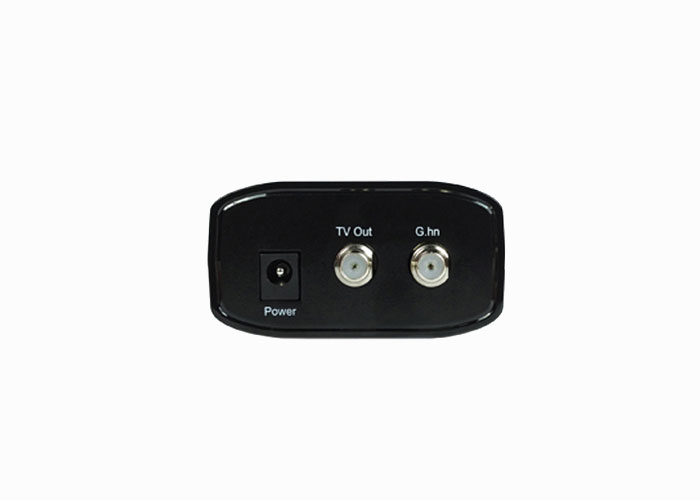

    Two coaxial interfaces on the GCA-6010; one is for connecting to the backbone coax network and the other is for the TV set.

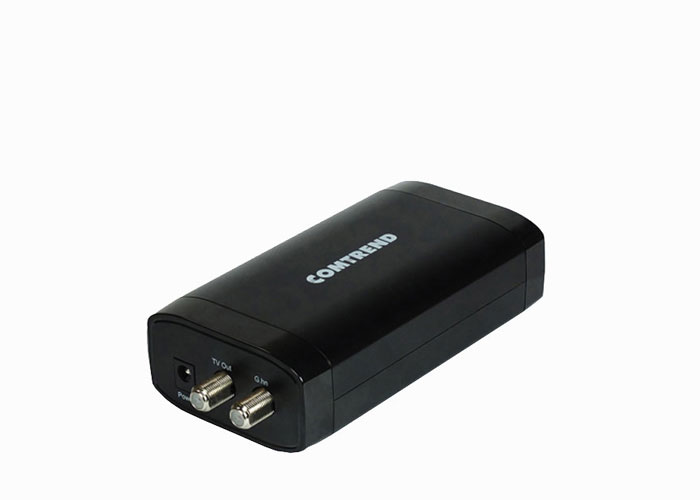

    GCA-6010 GCA-6010 GCA-6010

    Features

    Key Features

    • Super Performance: With ITU-T G.hn baseband plans, 200MHz for coax up to 2Gbps PHY rate over coax.
    • Ultra High Speed Data Transmission:: Of up to 1.7 Gbps dramatically increases the performance of next-generation home entertainment.
    • Plug & Play: Allows quick and easy connections with embedded plug-and-play, no extra configuration required. It can be paired easily by simply connecting Ethernet cables to routers and devices.
    • Security: With advanced data encryption capability, the coax networks are safer and more secure.
    • Diplexer for existence with existing TV service: Cut-off above 250MHz for existing TV signals, saving the extra cost for deployment.

    Specifications

    Specifications

    Interface

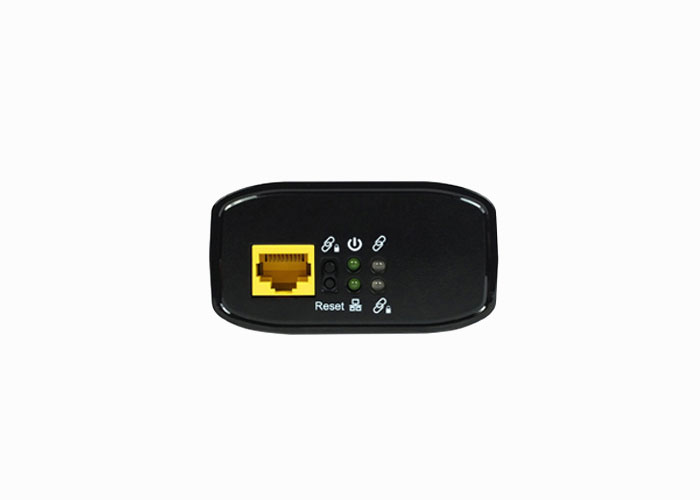

    • RJ-45 X 1 for GE Ethernet
    • LED Indicators: G.hn, Security, LAN, PWR
    • Buttons: G.hn pairing, Reset
    • F-type connector x 2

    G.hn (Coax)

    • ITU-T G.9960 & G.9961 compliant
    • G.hn 200MHz
    • Link rate 2Gbps,
    • Data throughput 1.7Gbps

    Management

    • HTTP Web-based
    • TR-069 over IPv4/v6 dual stack

    Networking Protocols

    • 802.1D Ethernet Bridge
    • 802.1Q VLAN
    • Quality of Service (QoS)
    • IGMP(IPv4) Snooping & MLD(IPv6) Snooping

    Diplexer for existing TV service

    • Frequency: 250MHz to 1.2 GHz

    External Power Adapter

    • Input: AC100-240V, Output: DC12V /1A

    Dimensions

    • 133mm (D) x 70mm (W) x 38mm (H)

    Certifications

    • CE, FCC, UL, ITU-T G.hn Standard

    ENVIRONMENT

    • Operating Temperature: 0 ~ 40 degrees Celsius
    • Relative Humidity : 8 ~ 95% (non-condensing)
