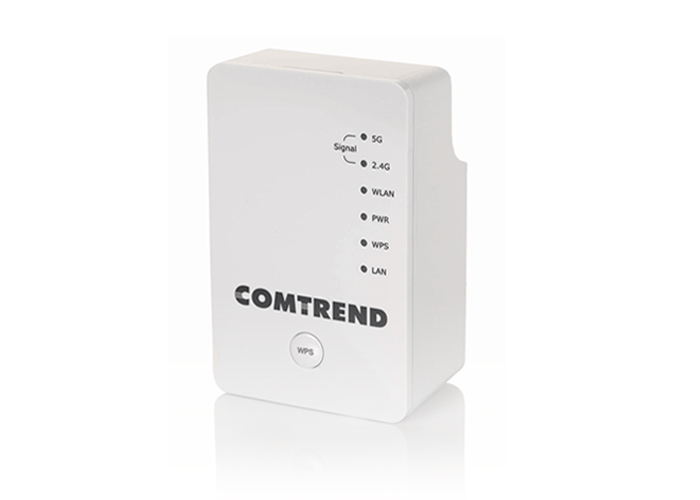

WAP-5920

AC750 Wireless Extender

  • 產品概述

    產品特徵:

    AC750 Wireless Extender

    產品說明:

    The time to transition is now. The Comtrend WAP-5920 AC750 Wireless Extender offers next generation 802.11ac up to 3x faster than 802.11n technology. The AC750 Wireless Extender offers a marked increase in value with farther reach and improved performance. With devices such as mobile phones increasingly ad opting 802.11ac, it is expected to completely replace 802.11n as the new industry standard. An 802.11ac wireless extender will become a must have for providing the fastest extended speeds to your devices.

    WAP-5920 WAP-5920

    產品特色

    產品特色

    Advantages:
    Advanced Placement Detection Technology Helps you can find the best location for your extender. Future Proof your Wireless Network The dual band WAP-5920 is compatible with older 11a/b/g/n and supports your 2.4GHz and 5GHz clients (i.e. laptop, tablet).

    Eliminate WiFi Dead Spots
    Extend your wireless signal to difficult to reach areas. Maximize your Internet Experience with 11ac Up to 3X faster than 11n technology.

    產品規格

    產品規格

    Flash + SDRAM:

    • 8MB Flash + 64MB DDRAM II

    Ethernet Port:

    • 10/100M UTP Port x 1 (Auto MDI/MDI-X) for LAN

    Frequency Band:

    • 802.11b/g/n 2.4GHz 802.11a/n/ac 5GHz

    Data Rate:

    • 11a: 6/9/12/24/36/48/54Mbps;
    • 11b: 1/2/5.5/11Mbps;
    • 11g: 6/9/12/24/36/48/54Mbps 11n (20MHz): MCS0-07,
    • up to 144Mbps 11n (40MHz): MCS0-07,
    • up to 300Mbps 11ac (80MHz): VHTMCS0-9,
    • up to 433Mbps

    Output Power:

    • 2.4GHz: 11b(11M): 17±1.5 dBm ,
    • 11g(54M): 15±1.5 dBm 11n(20MHz, MCS7): 14±1.5 dBm,
    • 11n(40MHz, MCS7): 14±1.5 dBm 5GHz: 11a(54M): 14±1.5 dBm,
    • 11n(20MHz, MCS7): 13±1.5 dBm,
    • 11n(40MHz, MCS7): 13±1.5 dBm 11ac(80MHz, VHTMCS9): 12±1.5 dBm

    Certification:

    • FCC

    Receive Sensitivity:

    • 2.4GHz: 11b(11M): -86±2dBm,
    • 11g(54M): -72±2dBm 11n(20MHz, MCS7): -71±2dBm,
    • 11n(40MHz, MCS7): -69±2dBm
    • 5GHz: 11a(54M): -75±2dBm,
    • 11n(20MHz, MCS7): -72±2dBm, 11n(40MHz, MCS7): -69±2dBm,
    • 11ac(80MHz, VHTMCS9): -63±2dBm

    Antenna:

    • Internal Antenna x 2 (2.4G x2 nT2R, 5G x1 1T1R)

    Input

    • AC 100-240V, 50-60Hz

    Dimension:

    • 3.5(H) x 2.25(W) x 1.5(D) inches 88.9(H) x 57.15(W) x 38.1(D) mm

    Temperature:

    • Operating: 32~104F° (0~40°C)

    Storage: -4~140°F (-20~60°C)

    • Humidity: Operating: 10~90% (NonCondensing)
    • Storage: Max. 95% (NonCondensing)

    Wireless Security:

    • 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
