PoE-9211

Gigabit PoE Injector

  • 產品概述

    產品特徵:

    Gigabit Power Over Ethernet (PoE) Injector

    產品說明:

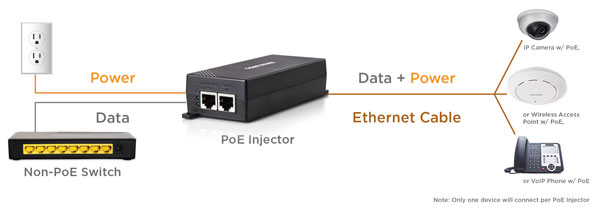

    Comtrend’s PoE-9211 Gigabit Power over Ethernet (PoE) Injector delivers both a gigabit network connection and electrical power to your PoE enabled devices. The PoE-9211 is ideal in applications where you would like to easily add a PoE device to your non-PoE network. Simply use an existing non-PoE switch with the PoE-9211 to bring power and data to you IP cameras, Access Points, VoIP Phones, and more.PoE-9211-Application-Diagram

    PoE-9211 PoE-9211

    產品特色

    產品特色:

    Key Benefits:

    Integrate your PoE & Non-PoE Networks

    • Reduce costs by using an existing non-PoE switch with the PoE-9211 to connect your PoE enabled devices.

    Simplify Deployment of PoE Enabled Devices

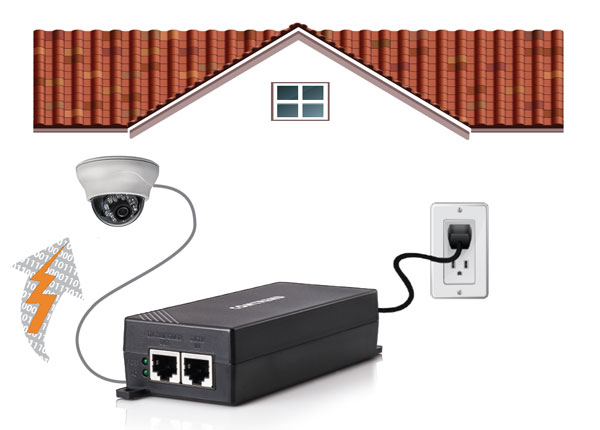

    • Eliminate the need to install high voltage outlets in hard-to-reach locations (i.e. ceilings, rooftops, etc.)PoE-9211-Simple-Deployment-Diagram

    Enjoy Ultra-Fast Wired Connectivity

    • Gigabit port—10x the speed of standard ports.

    Easy Setup

    • Three simple steps and your PoE enabled device is connected

    產品規格

    產品規格

    Hardware

    • 1 Port RJ-45 10/100/1000Base-T Input Port
    • 1 Port RJ-45 10/100/1000Base-T PoE Output Port
    • Power Input: 100-240V AC, 50-60Hz, 0.6A
    • Power Consumption 30 Watts
    • Dimensions: 6.10 (L) x 2.28 (W) x 1.42 (H) in; 155 (L) x 58 (W) x 36 (H) mm
    • Weight: 185g; 3.88oz

    Power over Ethernet

    • Standard: IEEE 802.3af, IEEE 802.3at
    • Power Output: DC53V/0.55A
    • Pin Assignment: 1/2 (+), 3/6 (-) End-Span

    Environment

    • Temperature: 32°F-104°F; 0°C-40°C (RH Non-Condensing)
    • Storage Temperature: 5%~90% (Non-Condensing)

    Standards Compliance

    • Standards:
    • IEEE 802.3 10BaseT Ethernet
    • IEEE 802.3u 100BaseTX Fast Ethernet
    • IEEE 802.3ab 1000BaseT Gigabit Ethernet
    • IEEE 802.3af Power Over Ethernet (PoE)
    • IEEE 802.3at Power over Ethernet Plus (PoE+)

    Certifications

    • FCC, CE, Class A

    支援文件

    產品規格書

    DS_PoE-9211.pdf
