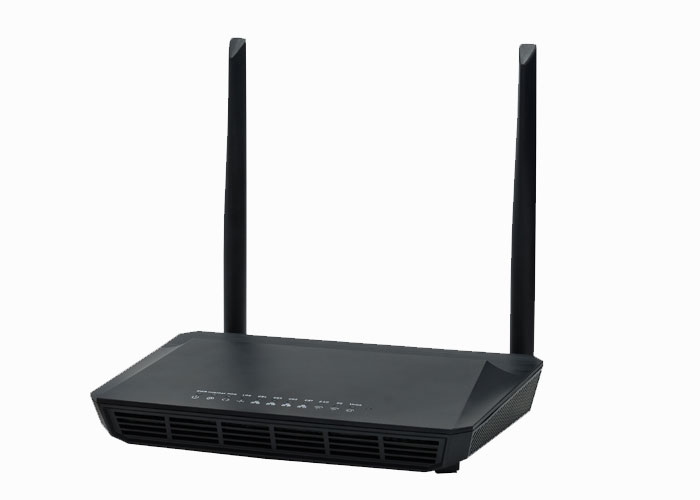

GRG-4288

Wireless VoIP GPON Router AC1200
PON | 4 GE LAN | VoIP | 802.11ac@2.4GHz&5GHz

  • Overview

    Description:

    GRG-4288 is a next-generation GPON integrated access device. It offers high-performance Data, Voice and Video services for individual users, SOHO (small office or home office), small businesses, etc. It’s an incredibly robust device allowing users to access a high-speed internet connection via its GPON port and share it with its four Gigabit Ethernet ports.

    GRG-4288 supports 867 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band, supporting more end-user devices while reducing signal interference. Family members can play video games, listen to music, check email, shop, stream movies, and more.

    GRG-4288 GRG-4288

    Features

    Key Features

    • Access to Fiber Optical Network: Supports downstream 2.5Gbps and upstream to 1.25Gbps with a transmission distance of up to 20km.
    • Supports Voice over Internet Protocol (VoIP) as a flexible and affordable solution for voice services
    • Easy Remote Management: GRG-4288 supports the ONT Management and Control Interface (OMCI), making it easy to configure, activate and manage remotely from an Optical Line Terminal (OLT).
    • Maximum E.I.R.P
      2.4GHz
      802.11b : 27.5dBm / 562mW, 802.11g : 28.5dBm / 707mW
      802.11n (HT20) : 28.25dBm / 668mW, 802.11n (HT40) : 28.25dBm / 668mW
      5GHz
      802.11a : 27dBm / 501mW, 802.11n (HT20) : 30.5dBm / 1122mW
      802.11n (HT40) : 28.25dBm / 668mW, 802.11ac (VHT20) : 29.25dBm / 841mW
      802.11ac (VHT40) : 28.5dBm / 707mW

    Specifications

    Specifications

    GENERAL

    Memory: 128M Byte

    RAM: DDR2: 256M Byte

    GPON Standards: ITU-T G.984, ITU-T G.988

    Distance: 20Km Max

    Data Rates:
    Upstream:1.25Gbps, Downstream:2.5Gbps

    Wireless Standards:
    IEEE802.11a/n/ac,5GHz, IEEE802.11b/g/n, 2.4GHz

    Signal Rate:
    5GHz: Up to 867Mbps, 2.4GHz: Up to 300Mbps

    Operation Frequency: 2.4GHz & 5GHz

    Reception Sensitivity
    5GHz
    11a 6Mbps: -96dBm, 11a 54Mbps: -79dBm
    11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,
    11n HT20: -72dBm, 11n HT40: -71dBm
    2.4GHz
    11g 54M: -77dBm
    11n HT20: -74dBm, 11n HT40: -72dBm

    Wireless Security
    WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

    VoIP Standards
    SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711

    HARDWARE

    Interfaces

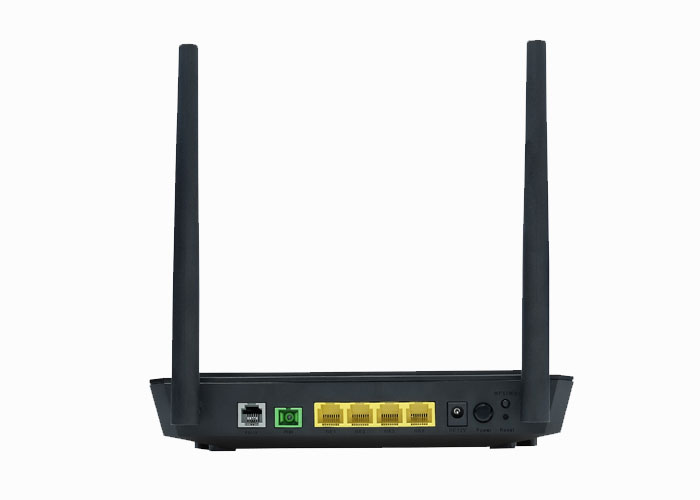

    1 x SC/APC GPON Port, 4 x 10/100/1000Mbps LAN Ports, 1 x FXS Port

    Buttons
    Power ON/OFF Button, Reset Button

    Power Supply
    DC 12V 1A

    Antenna
    2 x 5dBi fixed external dualband antennas

    Dimensions
    (W X D X H) 202 x 128x 35mm

    SOFTWARE FEATURES

    WAN Type
    Dynamic IP/Static IP/PPPoE

    DHCP
    Server, Client, DHCP Client List, Address Reservation

    Quality of Service
    WMM, Bandwidth Control

    Port Forwarding
    Virtual Server, Port Triggering, UPnP, DMZ

    VPN
    802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode

    Access Control
    Parental Control, Local Management Control, Host List, Access
    Schedule, Rule Management

    Firewall Security
    DoS, SPI Firewall
    IP Address Filter/MAC Address Filter/Domain Filter

    VoIP Features
    1 x FXS ports for connecting to analog telephones
    Call forwarding, Call waiting, Call block, 3-way conference call, etc.

    Management
    Access Control, Local Management, Remote Management

    Internet Protocol
    IPv4, IPv6

    ENVIRONMENT

    Operating Temperature
    0°C~40°C (32°F~104°F)

    Storage Temperature
    -40°C~70°C (-40°F~158°F)

    Relative Humidity
    10%~90%, non-condensing

    Storage Humidity
    5%~95%, non-condensing

    Resources

    Product Sheet



    DS_GRG-4288_V3.3.pdf
