GRG-4293

GPON ONT
GPON | 2.5 Gigabit Ethernet | TR-069

  • Overview

    GRG-4293 is a next-generation Gigabit Passive Optical Network (GPON) ONT, ideal for Fiber to The Home solution designed for advanced triple-play deployments. It’s an incredibly robust device allowing users to access a high-speed internet connection via its GPON port and share it with a 2.5 Gigabit Ethernet port.

    The indoor models of Comtrend’s GPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.

    Compliant with standard OMCI definition, GRG-4293 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

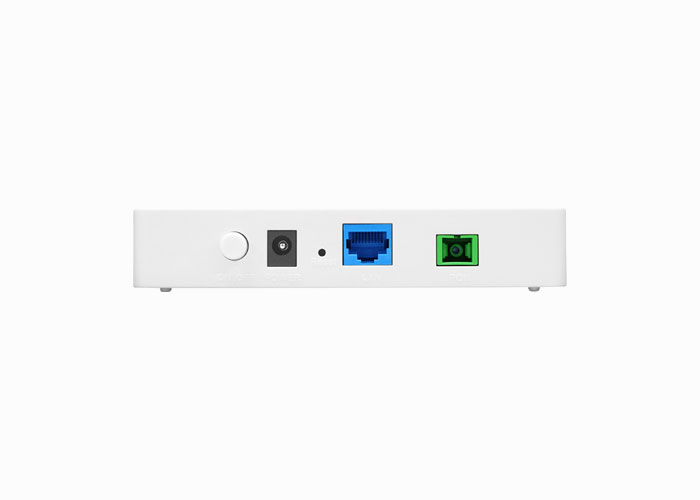

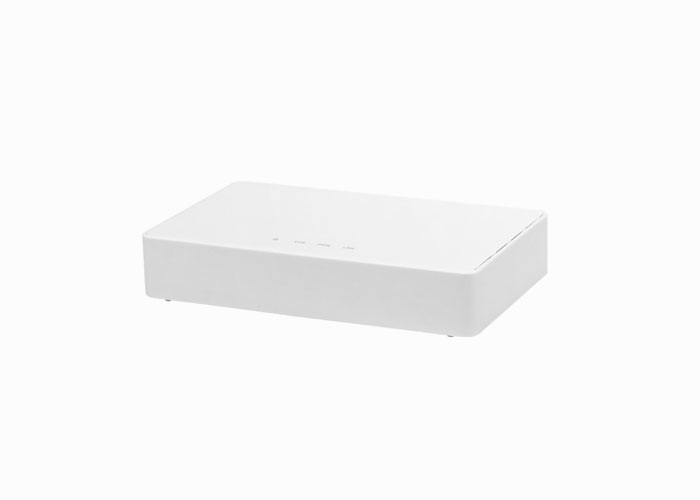

    GRG-4293 GRG-4293

    Features

    • Access to Fiber Optical Network: Supports downstream 2.5Gbps and upstream to 1.25Gbps with a transmission distance of up to 20km.
    • Easy Remote Management:
      - GRG-4293 supports the ONT Management and Control Interface (OMCI), making it easy to configure, activate and manage remotely from an Optical Line Terminal (OLT).
      - TR-069 standard data model for ISP remote control.

    Specifications

    HARDWARE

    • GPON Standards : ITU-T G.984
    • Distance : 20Km Max
    • Data Rates : Upstream: 1.25Gbps, Downstream: 2.5Gbps
    • Interfaces : 1 x SC/APC GPON Port, 1 x 10/100/1000/2500Mbps LAN Port
    • Buttons : Power ON/OFF Button, Reset Button
    • Power Supply : DC 12V 0.5A
    • Dimensions (W X D X H) : 137 x 83.5x 26.5mm

    SOFTWARE FEATURES

    • Quality of Service : WMM, Bandwidth Control
    • Port Forwarding : L2/L3 forwarding, L3 NAPT
    • VPN : 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
    • Access Control : Local Management Control, Host List, Access Schedule, Rule Management
    • Firewall Security :
      DoS, SPI Firewall
      IP Address Filter/MAC Address Filter/Domain Filter
      IP and MAC Address Binding
    • Management : Access Control, Local Management, Remote Management

    CETIFICATIONS

    • CE, RoHS

    PACKAGE CONTENTS

    • GPON ONT (GRG-4293)
    • Power adapter 12VDC/0.5A, 100-240VAC, 50/60Hz, 1.5m

    ENVIRONMENT

    • Temperature:
      Operating: 0°C~40°C (32°F~104°F)
      Storage: -40°C~70°C (-40°F~158°F)
    • Humidity (Non-condensing):
      Operating: 10%~90%, non-condensing
      Storage: 5%~95%, non-condensing

    Resources

    Product Sheet



    DS_GRG-4293_V3.2.pdf
