GRG-4286

XGSPON Bridge/Gateway
XGS-PON | 10Gigabit Ethernet | TR-069

  • Overview

    Description:

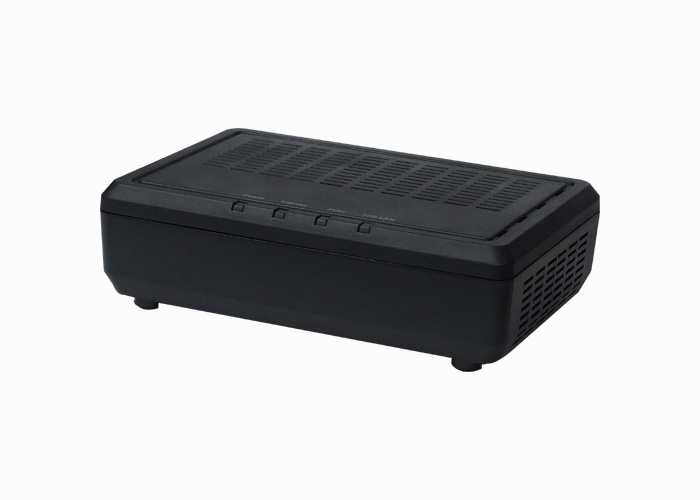

    Comtrend’s GRG-4286 is designed as an XGS-PON Bridge/Gateway capable of providing a strong and stable internet connection through XGS-PON fiber with one 10Gigabit Ethernet port as LAN to connect with the home wireless unit to provide seamless family internet access services.

    The indoor models of Comtrend’s xPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.

    Compliant with standard OMCI definition, GRG-4286 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

    GRG-4286 GRG-4286

    Features

    Key Features

    • XGS-PON: Symmetric 10G/10G UL/DL provides high speed fiber to the home services.
    • 10-Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
    • Routing Function: Routing software function integrated.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    Specifications

    HARDWARE SPECIFICATIONS

    Flash
    NAND Flash: 128M Byte

    RAM
    DDR3: 512M Byte

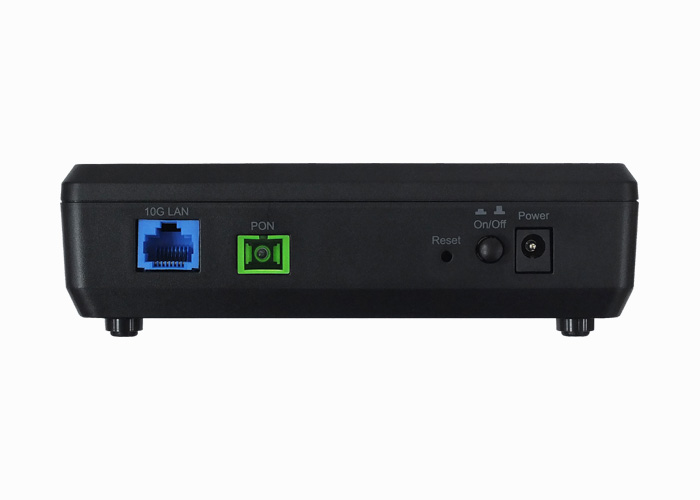

    Interfaces
    XGS-PON (SC/APC) x 1
    10 Gigabit Ethernet LAN x 1

    LED Indicators
    Power, Internet, PON, ETH

    Buttons
    Reset button

    Power Input
    12DVC/1.0A

    REMOTE MANAGEMENT

    Protocol
    TR-069, HTTP, HTTPS, TELNET, SSH

    CETIFICATIONS
    CE

    PACKAGE CONTENTS
    XGS-PON Bridge/Gateway (GRG-4286) x 1
    Power adapter 12DVC/1.0A, 100-240ACV, 50/60Hz, 1.5m x 1
    RJ-45 Giga Ethernet cable (8P8C, 1.5m) x 1

    ENVIRONMENT

    Temperature
    Operating: 0°C ~ 40°C (32°F ~104°F)
    Storage: -40°C ~ 70°C (-40°F ~158°F)

    Humidity (Non-condensing)
    Operating: 10 ~ 90% RH, non-condensing
    Storage: 5 ~ 90% RH, non-condensing

    Resources

    Product Sheet



    DS_GRG-4286_V3.1.pdf
