FUNCIONALIDADES PRINCIPALES

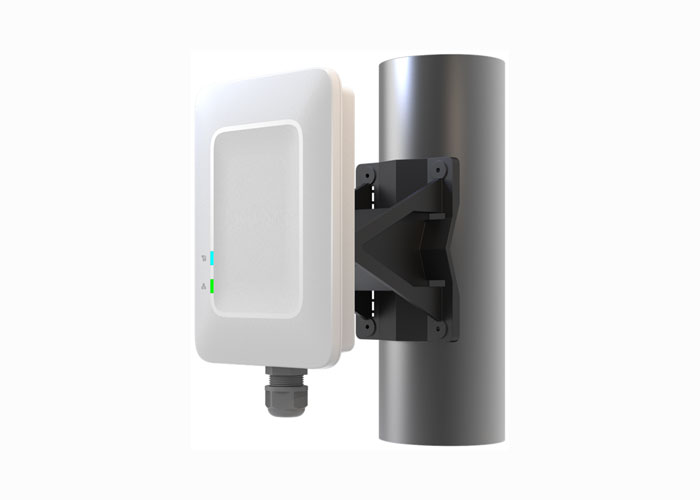

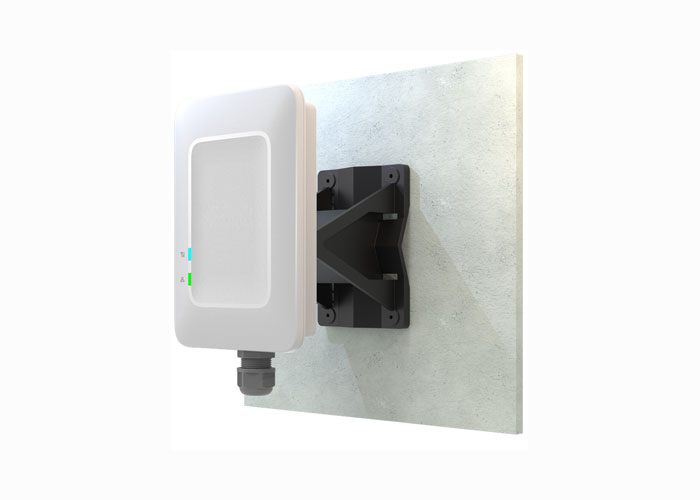

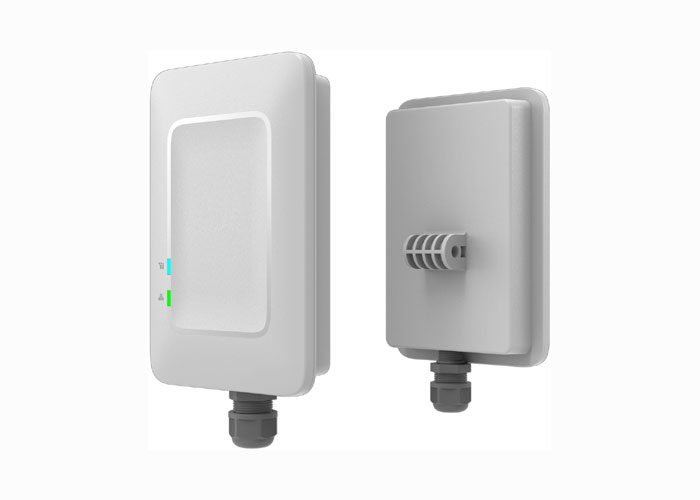

• Hecho para durar: Rigurosamente diseñado y probado para soportar fuertes vientos y calor, el 5GR-3563 es IP67 y resiste fácilmente las duras condiciones ambientales con su diseño compacto y resistente diseño.
• Aplicación complementaria: La aplicación 5G Installer está diseñada para facilitar el proceso de instalación. Con un intuitivo interfaz, la aplicación permite a los operadores visualizar la intensidad de la señal en tiempo real y enlazar 5GR-3563 con la estación base óptima.

Especificaciones

Hardware

• 1x 2.5 GE PoE LAN port
• LEDs:
  1x Tri-color signal status LED
  1x Dual-color Ethernet status LED
• 1x 4FF format Nano SIM card slot
• 1x Reset button

IP Networking

• Soporta IPv4/IPv6 dual stack (NDP IPv6)
• DHCP server
• ICMP supported
• Virtual Private Network (VPN) passthrough
• Multiple APNs

NAT

• Soporta NAT/NAPT
• Soporta DMZ
• Soporta port-forwarding
• Soporta ALG

Routing

• Soporta modos bridge o router

IP firewall

• Firewall can be enabled or disabled via GUI
• DoS attack prevention
• Application-level firewall
• Filters LAN IP address

Gestión

• Supports local/remote device management and firmware upgrade via TR-069 and web GUI
• APN management
• PIN/PUK management
• Network selection
• Network preference
• Supports UPnP
• TR-069 management with TR-181 data model
• Configuration backup/restore
• Connected client list
• Diagnostic

5G NR Sub 6 Interface

• 3GPP Release 16 standard-compliant
• Supports both NSA and SA modes
• Supports frequencies:
  FDD bands: n1/n3/n5/n7/n8/n20/n28
  TDD bands: n38/n40/n41/n78
  SDL Band: n75/n76
• DL 4×4 MIMO:
  FDD bands: n1/n3/n7
  TDD bands: n38/n41/n78
• UL 2×2 MIMO:
  TDD bands: n78
• Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• Output power:
  Class 1.5 (29 dBm) for n78
  Class 2 (26 dBm) for n41/n78
  Class 3 (23 dBm) for n1/n3/n5/n7/n8/n20/n28/n38/n40

4G LTE interface

• DL 4×4 MIMO:
  LTE FDD bands: B1/B3/B7
  LTE TDD bands: B38/B41/B42/B43
• Maximum data rates: DL 1.6 Gbps; UL 200 Mbps
• 3GPP UE DL Category 19, UL Category 18 standard-compliant
• Frecuencias soportadas:
  LTE FDD bands: B1/B3/B5/B7/B8/B20/B28/B32
  LTE TDD bands: B38/B40/B41/B42/B43
• Soporta DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• Soporta UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• Potencia Salida Clase 3 (23 dBm) para Bandas FDD/TDD

5G/4G antennas

• Ultra-high band: Up to 9 dBi peak gain
• High band and middle band: Up to 4 dBi peak gain
• Low band: Up to 2 dBi peak gain

Consumo

• Power over Ethernet
• Consumo PoE: < 15 W (est.)

Especificaciones Físicas

• Dimensiones (WxDxH): 204 x 143 x 47 mm (8.03” x 5.63” x 1.85”)
• Peso: 700 g (1.54 lbs)
• Dimensiones (WxDxH): 270 x 195 x 115 mm (10.63” x 7.68” x 4.53”)
• Peso Embalaje: 1500 g (3.3 lbs)

CONDICIONES AMBIENTALES

Físicas y Ambientales

• Condiciones de Operación:
  Temperatura: -30°C to 55°C (- 22°F to 131°F)
  Humedad: 5% to 95% (non-condensing)
• Almacenamiento
  Temperatura: -20°C to 70°C (-4°F to 158°F)
  Humedad: 5% to 95% (non-condensing)
• Ingress Protection rating
  IP67
• Wind load testing
  GR 487 standard compliant
  Level 17 wind force
  Wind speeds 60 m/sec (132MPH)

CERTIFICACIONES

Certificación

• CE
• WEEE (Waste Electrical and Electronic Equipment) Directive certification
• RoHS (Restriction of Hazardous Substances) Directive certification
• HSF (Hazardous Substance Free)
• European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste
