VG-8032u

Wi-Fi 6 GEth. Router AX3000
802.11ax | GE LAN | GE WAN | VoIP | TR-069

  • Overview

    VG-8032u is equipped with a dual core processor, operates at a main frequency of 1.0GHz and provides superior processing speed and stable operation.

    2.4G and 5G support the new generation Wi-Fi 6 (11ax) standard, having stronger anti-interference capability and faster transmission rate. The dual frequency concurrent wireless rate is up to 3000Mbps. Furthermore, VG-u provides one WAN + three LAN full gigabit network ports, convenient for home networking.

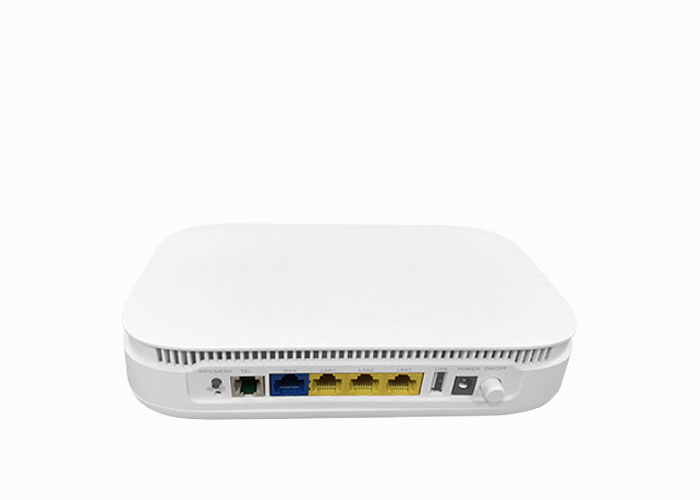

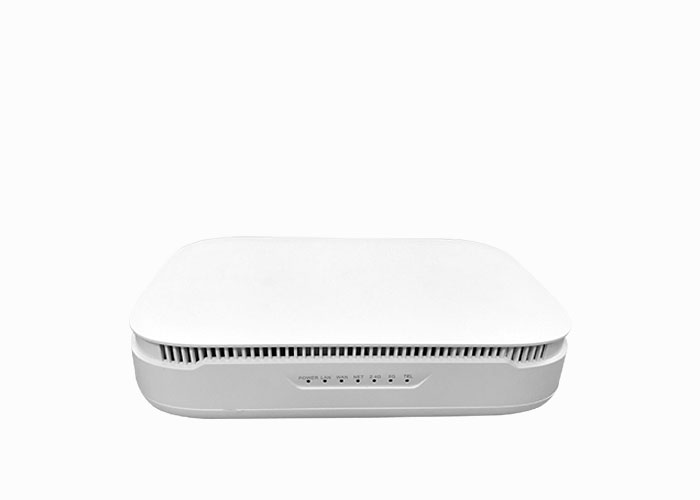

    VG-8032u VG-8032u

    Features

    • Supports Wi-Fi 6 (802.11ax) new generation Wi-Fi standard
    • Supports 2.4GHz, 5GHz, dual frequency concurrently, automatically selecting 2.4G or 5G frequency band
    • 2.4G supports 40MHz bandwidth, and 5G supports 160MHz bandwidth
    • Supports BSS coloring which makes more use of the Wi-Fi spectrum by reducing interference to ensure more efficient service to multiple connected devices in busy Wi-Fi environments
    • OFDMA and MU-MIMO support up-link and down-link, allows efficient data transmission for more devices at the same time
    • Supports mesh networking; say goodbye to cumbersome wiring, realize automatic networking and whole home Wi-Fi 6 coverage
    • Provides a full Gigabit WAN port and three full Gigabit LAN ports
    • Supports Voice over Internet Protocol (VoIP) as a flexible and affordable solution for voice services

    Specifications

    Main Chipset

    • Flash Memory: 128MB
    • SDRAM: 256MB

    Interface

    • Ethernet LAN: 3x RJ-45 Port (Yellow color, unshielded)
    • 10/100/1000Mbps
    • WAN: 1x RJ-45 GE WAN
    • VoIP: 1x RJ-11 FXS
    • USB: 1x USB2.0
    • WLAN: 2.4G 11ax 2T2R+5G 11ax 2T3R, 5x internal antennas
    • Buttons: 1x Reset/WPS button
    • MESH: 1x MESH button
    • Power Jack: DC power jack
    • Switch: On/Off switch

    Power

    • Adaptor Input: 100 ~ 240 VAC(±10%), 50/60Hz
    • Adaptor Output: Single-output-DC 12V, 1.5A

    ENVIRONMENT

    Physical & Environmental

    • Operating Temperature: 0 ºC ~40 ºC (32 ºF ~104 ºF);
    • Storage Temperature: -20 ºC ~70 ºC (-4 ºF ~158 ºF)
    • Operating Humidity: 0 to 95% RH
    • Storage Humidity: 0 to 95% RH

    Green Product Requirement

    • RoHS

    Resources

    Product Sheet

    DS_VG-8032u_V3.3.pdf
