GRG-4361
XGSPON Bridge/Gateway
XGS-PON | 10Gigabit Ethernet | TR-069
-
Overview
Comtrend’s GRG-4361 is designed as an XGS-PON Bridge/Gateway capable of providing a strong and stable internet connection through XGS-PON fiber with one 10Gigabit Ethernet port as LAN to connect with the home wireless unit to provide seamless family internet access services.
The indoor models of Comtrend’s xPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.
Compliant with standard OMCI definition, GRG-4361 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Features
- XGS-PON: Symmetric 10G/10G UL/DL provides high speed fiber to the home services.
- 10-Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
- Routing Function: Routing software function integrated.
- Remote Management: TR-069 standard data model for ISP remote control.
Specifications
HARDWARE:
Flash
- Nand Flash: 128M Byte
RAM
- RAM: DDR4 4G bits

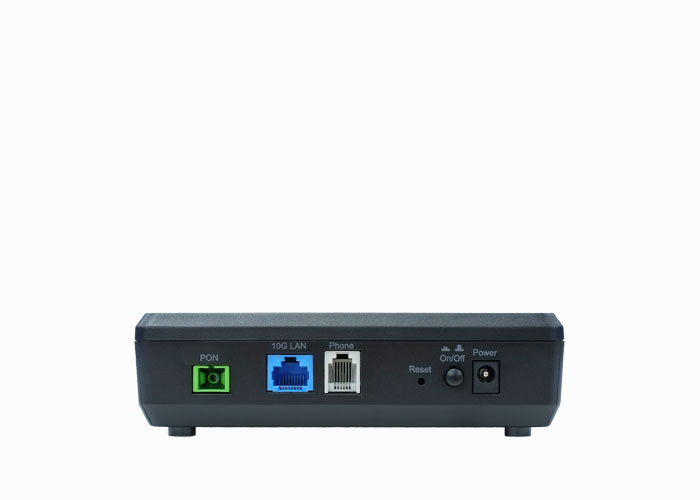

Interfaces
- XGS-GPON (SC/APC) x 1
10-Gigabit Ethernet LAN x 1
RJ-11 (FXS) x 1
LED Indicators
- Power, GPON, 10GLAN, Phone
Buttons
- Reset button
Power Input
- 12DVC/1.0A
REMOTE MANAGEMENT
Protocol
- TR-069, HTTP, HTTPS, TELNET, SSH
CERTIFICATIONS
- FCC, IC
PACKAGE CONTENTS
- XGS-PON Bridge/Gateway (GRG-4361) x 1
- Power adapter 12DVC/1.0A, 100-240ACV, 50/60Hz, 1.5m x 1
- RJ-45 Giga Ethernet cable (8P8C, 1.5m) x 1
ENVIRONMENT
- Temperature:
Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -40°C ~ 70°C (-40°F ~158°F) - Humidity (Non-condensing):
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 90% RH, non-condensing
