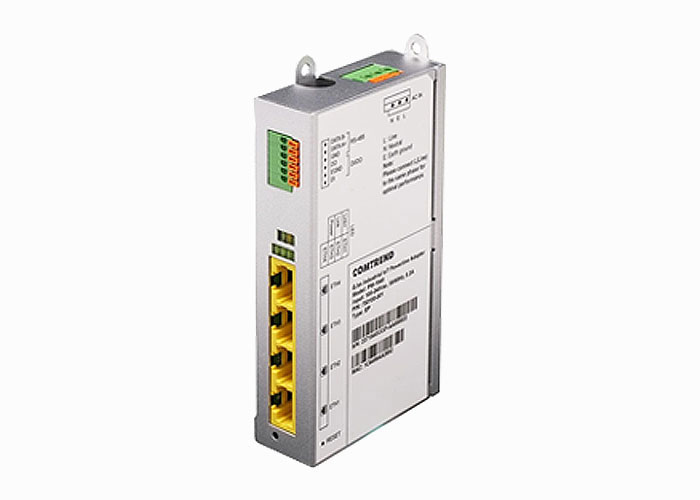

PM-1540, PM-1510
PowerLine Module
GE LAN | RS-485 | DI/DO | Industrial IoT | ITU-T G.hn
-
Overview
As per ITU-T standards, Comtrend’s Power Module series utilizes G.hn technology to provide a wired, secure, bounded latency, high speed, and real-time connection. With Gigabit LAN port(s), RS-485 and DI/DO interfaces, Power Modules can collect and transfer data over power lines from power meters (or EVSE) and IoT devices to replace Ethernet cable wiring/unstable wireless connections of existing field applications. It enables significant cost savings on installation, maintenance and wiring materials.
The Power Module series works within an electric wire domain of up to 250 nodes; enabling large scale deployment, ideal for EV charging station (EVSE) backend communication, smart parking and data centers.
From an installation point of view, the Power Module design provides a terminal block (for power wire insert), mounting holes and a DIN rail mounting kit option
Features
- Data and power on a single wire, reuses existing wiring
- Up to 250 nodes in one power group connection
- Up to 16 levels of repetition
- Reaches up to 600 meters in field tests
- Automatic Self-Healing - node to node will find the best path via software
- Plug and Play
Specifications
GIGABIT ETHERNET
- IEEE 802.3bz
- 10/100/1000 BASE-T, auto-sense
- Support MDI/MDX
POWER LINE COMMUNICATION
- ITU-T G.9960 & G.9961 compliant
- G.hn 50MHz MIMO Boost
MANAGEMENT
- HTTP Web-based (optional)
- TR-069 sobre IPv4/v6 dual stack (Optional)
MODULACIONES
- OFDM, FEC
DIMENSIONS
- PM-1540, PM-1510, PM-1510PoE, PM-1510dc
115mm (H) x 65 mm (W) x 21 mm (PCB w/components)
120mm (H) x 70 mm (W) x 26.5 mm (with housing) - PM-1510s
75mm (H) x 75 mm (W) x 21 mm (PCB w/components)
ENVIRONMENT
- Temperature
Operating: 10°C ~ 70°C (-40°C ~ 70°C as an option))
Storage: -25°C ~ 65°C (-13°F ~149°F) - Humidity (Non-condensing)
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 90% RH, non-condensing
ACCESSORY
- DIN Rail mounting kit (Optional)
