PG-9187

G.hn Wave2 Powerline AX1800
Wi-Fi 6 Desktop AP
G.hn | 100MHz MIMO | 4x GE LAN | DB 802.11ax | 2T2R | Easy Mesh | Data Elements | OpenSync

  • Overview

    The PowerGrid 9187, ITU-T G.hn networking standard compliant powerline extender is designed to meet the growing demand for perfect connectivity and coverage across multiple devices connected concurrently. The G.hn wave2 powerline AX1800 allows users to take Wi-Fi anywhere throughout the home for simultaneous Internet/video streaming.

    The device supports Wi-Fi 6 802.11ax AP, enabling high speed wireline and wireless connectivity needed for multiple devices operating simultaneously in connected homes. The PowerGrid 9187 is able to support the Wi-Fi Alliance EasyMesh standard, Data Elements and OpenSync for the future mesh applications.

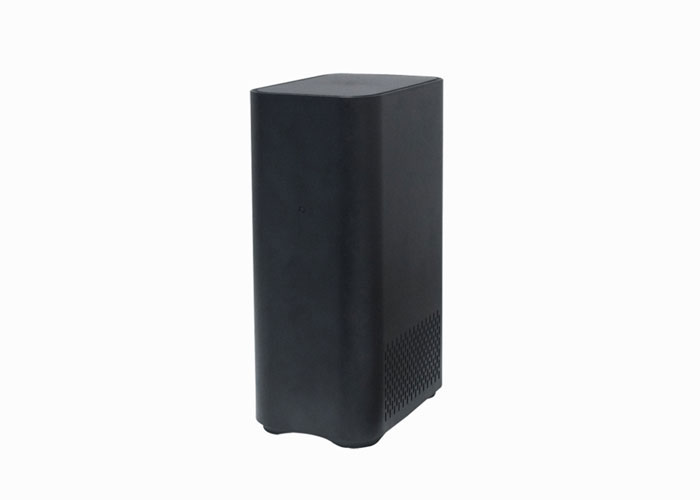

    PG-9187 PG-9187

    Features

    • G.hn MIMO Performance: Supports ITU-T G.hn on G.9960, G.9961, G.9963 boosting PLC throughput up to 1.2Gbps PHY rate over powerline.
    • Concurrent Dual Band Wi-Fi 6 11ax: Industrial leading integrated dual-band Quad Core SoC. Chip.
    • Target Wake Time: Allows resource scheduling to significantly improve device battery life, which is particularly important for IoT application.
    • Improved Performance in Dense Environments: New Wi-Fi 6 features including BSS coloring and ODFMA increase performance in dense Wi-Fi environments.
    • Advanced Security Design: Unique Device Certificate in production, and Secure Boot software mechanism to protect the overall security of the customer
    • Future Advanced Wi-Fi Feature (in Roadmap): EasyMesh, Data Elements, OpenSync for the future mesh applications.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

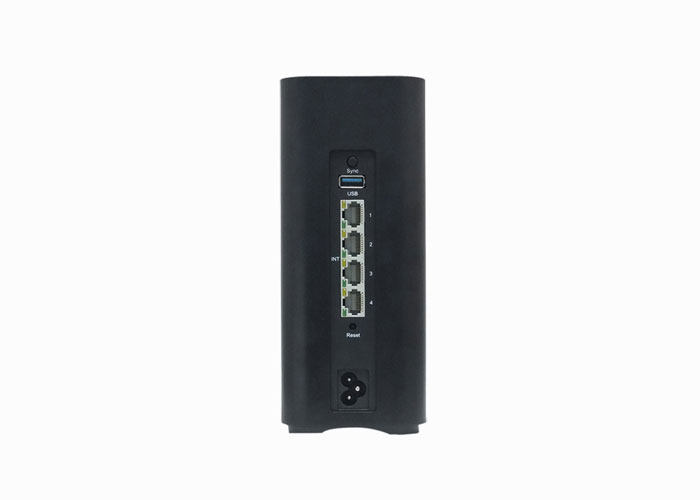

    Interfaces

    • 4x Gigabit Ethernet LAN
    • 1x USB 3.0
    • LED Indicator: system status
    • Buttons: G.hn pairing, RESET
    • 2x Internal Wi-Fi DB Antenna
    • 3-pin AC socket

    G.hn (PLC)

    • ITU-T G.9960, G.9961, G.9963 compliant
    • G.hn 100MHz MIMO
    • AES 128 bits encryption ensures total data security
    • NDIM support

    WLAN (Wi-Fi)

    • 2.4GHz 802.11ax, 2T2R, Europe Ch 1 to 13
    • 5GHz 802.11ax, 2T2R, Europe Ch 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
    • WPA, WAP2, WAP3–Enterprise & Personal
    • WMM, Dynamic Channel Selection (DCS), Target Wake Time (TWT), BSS Color

    Management

    • HTTP Web-based
    • Single TR-069 entity for G.hn & Wi-Fi functions
    • TR-069 over IPv4/v6 dual stack

    Networking Protocols

    • 802.1D Ethernet Bridge
    • 802.1Q VLAN
    • Quality of Service (QoS)
    • IGMP(IPv4) Snooping & MLD(IPv6) Snooping

    Power

    • 100-240V~50/60Hz 0.425A

    Dimensions

    • 80(W) x 120(D) x 195(H) mm

    Certifications

    • CE, ITU-T G.hn Standard

    ENVIRONMENT

    • Operating temperature: 0 ~ 40 degrees Celsius
    • Relative humidity: 8 ~ 95% (non-condensing)

    Resources

    Product Sheet

    DS_PG-9187_V3.3.pdf
