PG-9088

G.hn Wave2 Powerline
Powerline Ethernet Adapter
G.hn 1.2Gbps | 100MHz MIMO | 1x GE LAN | Filtered Outlet

  • Overview

    The PowerGrid 9088, ITU-T G.hn networking standard compliant ethernet adapter provides the best quality data transmission for the truly high-speed ‘connected home’ experience. It allows users to extend a local area network via existing power lines, eliminating the need for extra wiring. Installation at home (or in a small office) is quick and easy as the PowerGrid 9088 comes with plug-and-play technology.

    The PowerGrid 9088 supports the new generation of so-called G.hn wave2 tech, 100MHz MIMO operation with an AC female power socket and can be used with two fully programmable reception and transmission paths to attain up to 1.2Gbps PHY over powerline. The PowerGrid 9088 comes pre-configured for easy installation / configuration, and it features the most secure end-to-end encryption algorithms for safeguarding the network integrity, with advanced energy-saving features based on Ethernet link activity; automatic standby mode.

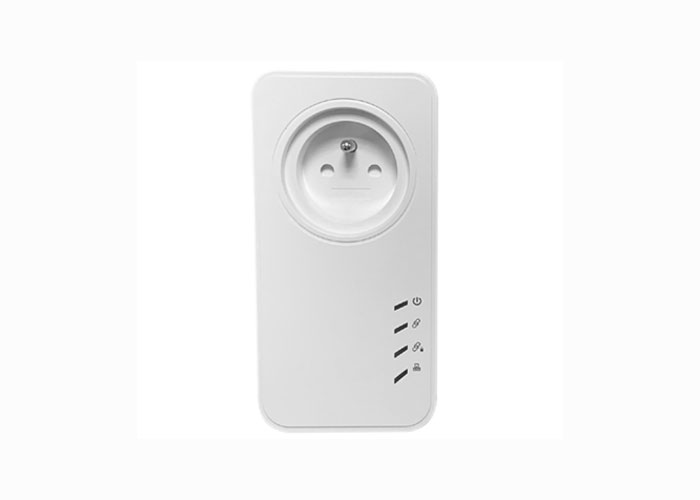

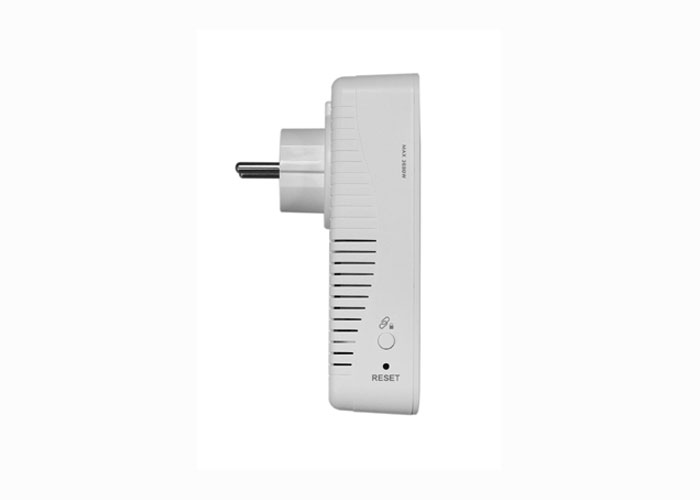

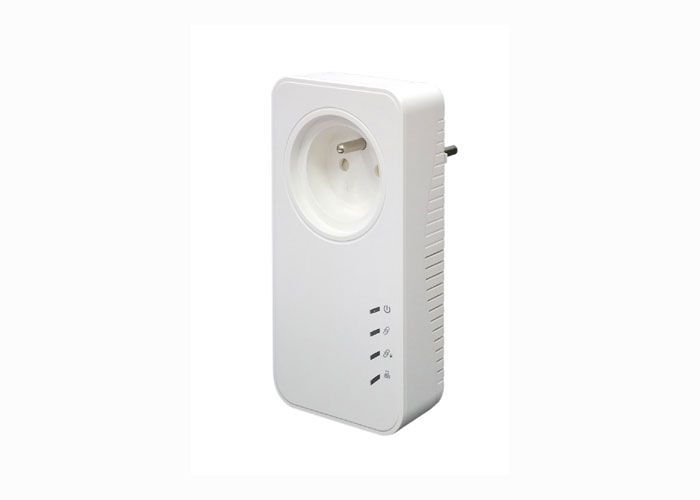

    PG-9088 PG-9088 PG-9088

    Features

    • MIMO Performance: ITU-T G.hn baseband uses 100 MHz MIMO techniques to boost PLC throughput up to 1.2Gbps PHY rate over powerline.
    • High Speed Data Transmission: High speed (around max 1000 Mbps) dramatically increases the performance of next-generation home entertainment applications.
    • No Extra Wires Needed: The local area network can be extended without the hassle of having to install extra wiring because the power line network is already a commonplace fixture in most households.
    • Simple Pairing, Plug & Play: Quick and easy connections with embedded plug-and-play, no extra configuration required!
    • Extends Connecting Range & Eliminates Dead Spots: Unlike wireless, Power line technology is capable of actually covering more than 95% of a typical household area.
    • More Outlets than Other Wired Solutions: On average, there are 45 power outlets and only 3-5 cable or phone outlets in a household, therefore making power lines a more convenient solution for extending networks.
    • Security: With advanced data encryption capability, the power line networks are safer and more secure.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    Interfaces:

    • 1x Gigabit Ethernet LAN
    • 1x AC power plug
    • 1x AC power socket
    • LED Indicators: G.hn, LAN, PWR, Security
    • Buttons: G.hn pairing, Reset

    Ethernet:

    • Standard IEEE 802.3
    • 10/100/1000 Mbps BaseT auto-sense
    • Auto rate and duplex negotiation
    • MDI/MDX support

    G.hn:

    • ITU-T G.9960 & G.9961 compliant
    • G.hn 100MHz MIMO
    • Up to 1200 Mbps at Phy rate
    • NDIM support

    Modulations:

    • OFDM, FEC, Flexible frequency configuration

    Management:

    • HTTP Web-based (optional)
    • TR-069 over IPv4/v6 dual stack (Optional)

    Security:

    • AES 128 bits encryption ensures total data security

    Networking Protocols

    • 802.1D Ethernet Bridge
    • 802.1Q VLAN
    • Quality of Service (QoS)
    • IGMP(IPv4) Snooping & MLD(IPv6) Snooping

    Power

    • Input: 100-240 VAC, 50Hz/60Hz, 16A
    • Output: 100-240 VAC, 50Hz/60Hz, 16A

    Dimensions

    • 140mm(H)x70 mm(W) x 36.5mm (without plug)(D)

    Certifications

    • FCC, CE, ITU-T G.hn Standard

    ENVIRONMENT

    • Operating temperature: 0 ~ 40 degrees Celsius
    • Relative humidity: 8 ~ 95% (non-condensing)
