5GR-3563

5G NR Outdoor Modem
5G Sub-6 | 4G LTE | SA & NSA | 2.5 GE LAN | IEEE802.3at PoE PD | IP67 Waterproof & Dustproof

  • Overview

    Great Performance
    The 5GR-3563 is equipped with a cross-pole antenna to provide 9dBi peak antenna gain for a better 5G signal reception. Enjoy ultrafast speeds with our interference-proof shieldings, state-of-the-art antenna design and an output power up to 29dBm.

    Deployment Flexibility

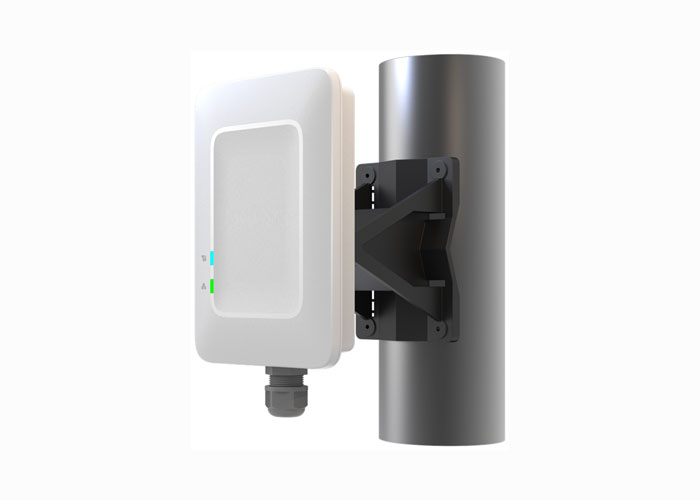

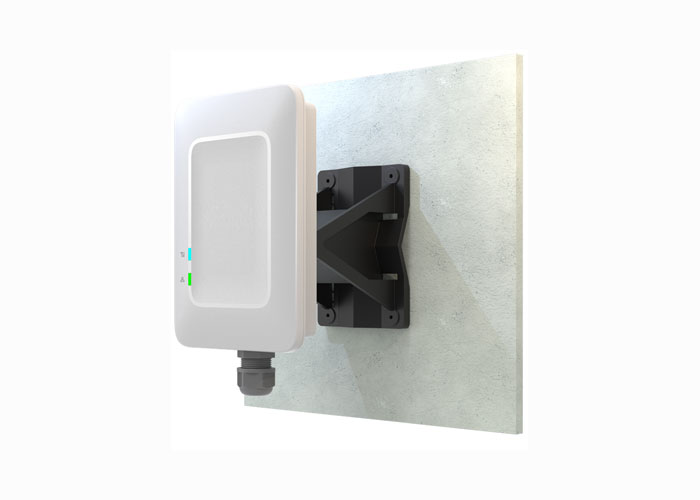

    Alongside the 5G Installer App, the kit offers a comprehensive solution that includes remote management and a flexible mounting kit.

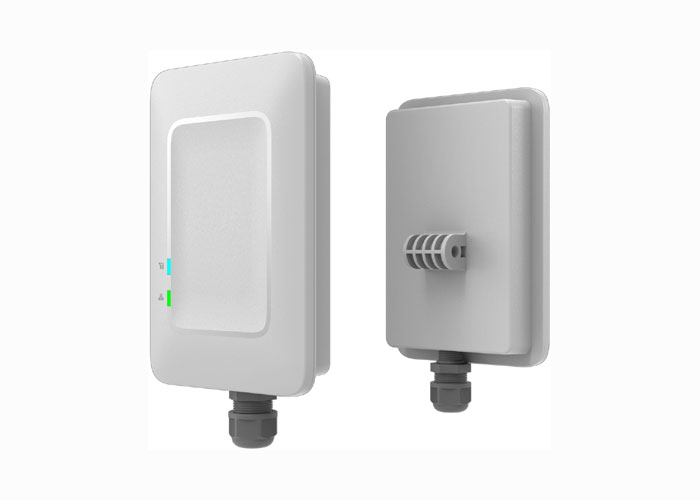

    5GR-3563 5GR-3563 5GR-3563

    Features

    • Made To Last
      Rigorously engineered and tested to withstand high winds and heat, the 5GR-3563 is fully IP67 compliant and easily weathers harsh environmental conditions with its compact and ruggedized design.
    • Companion Application
      The 5G Installer App is designed to make the installation process easier. With an intuitive interface, the application allows operators to visualize signal strengths in real time and hone the 5GR-3563 towards the optimum base station.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    Hardware interface

    • 1x 2.5 GE PoE LAN port
    • LEDs:
      1x Tri-color signal status LED
      1x Dual-color Ethernet status LED
    • 1x 4FF format Nano SIM card slot
    • 1x Reset button

    IP Networking

    • Supports IPv4/IPv6 dual stack (NDP IPv6)
    • DHCP server
    • ICMP supported
    • Virtual Private Network (VPN) passthrough
    • Multiple APNs

    NAT

    • Supports NAT/NAPT
    • Supports DMZ
    • Supports port-forwarding
    • Supports ALG

    Routing

    • Supports bridge or router modes

    IP firewall

    • Firewall can be enabled or disabled via GUI
    • DoS attack prevention
    • Application-level firewall
    • Filters LAN IP address

    Management

    • Supports local/remote device management and firmware upgrade via TR-069 and web GUI
    • APN management
    • PIN/PUK management
    • Network selection
    • Network preference
    • Supports UPnP
    • TR-069 management with TR-181 data model
    • Configuration backup/restore
    • Connected client list
    • Diagnostic

    5G NR Sub 6 Interface

    • 3GPP Release 16 standard-compliant
    • Supports both NSA and SA modes
    • Supports frequencies:
      FDD bands: n1/n3/n5/n7/n8/n20/n28
      TDD bands: n38/n40/n41/n78
      SDL Band: n75/n76
    • DL 4×4 MIMO:
      FDD bands: n1/n3/n7
      TDD bands: n38/n41/n78
    • UL 2×2 MIMO:
      TDD bands: n78
    • Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
    • Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
    • Output power:
      Class 1.5 (29 dBm) for n78
      Class 2 (26 dBm) for n41/n78
      Class 3 (23 dBm) for n1/n3/n5/n7/n8/n20/n28/n38/n40

    4G LTE interface

    • DL 4×4 MIMO:
      LTE FDD bands: B1/B3/B7
      LTE TDD bands: B38/B41/B42/B43
    • Maximum data rates: DL 1.6 Gbps; UL 200 Mbps
    • 3GPP UE DL Category 19, UL Category 18 standard-compliant
    • Supports frequencies:
      LTE FDD bands: B1/B3/B5/B7/B8/B20/B28/B32
      LTE TDD bands: B38/B40/B41/B42/B43
    • Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
    • Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
    • Output power class 3 (23 dBm) for FDD/TDD bands

    5G/4G antennas

    • Ultra-high band: Up to 9 dBi peak gain
    • High band and middle band: Up to 4 dBi peak gain
    • Low band: Up to 2 dBi peak gain

    Power Consumption

    • Power over Ethernet
    • Power consumption at PoE: < 15 W (est.)

    Physical Specifications

    • Item dimensions (WxDxH): 204 x 143 x 47 mm (8.03” x 5.63” x 1.85”)
    • Item weight: 700 g (1.54 lbs)
    • Packing dimensions (WxDxH): 270 x 195 x 115 mm (10.63” x 7.68” x 4.53”)
    • Packing weight: 1500 g (3.3 lbs)

    ENVIRONMENT

    Physical & Environmental

    • Operating Environment
      Temperature: -30°C to 55°C (- 22°F to 131°F)
      Humidity: 5% to 95% (non-condensing)
    • Storage Environment
      Temperature: -20°C to 70°C (-4°F to 158°F)
      Humidity: 5% to 95% (non-condensing)
    • Ingress Protection rating
      IP67
    • Wind load testing
      GR 487 standard compliant
      Level 17 wind force
      Wind speeds 60 m/sec (132MPH)

    CERTIFICATIONS

    Certification

    • CE
    • WEEE (Waste Electrical and Electronic Equipment) Directive certification
    • RoHS (Restriction of Hazardous Substances) Directive certification
    • HSF (Hazardous Substance Free)
    • European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste
