5GR-3552

5G NR Indoor Router AX3600
5G NR Sub-6 | 4G LTE, Cat.19 | Wi-Fi 6, 4T4R+4T4R | 1x 2.5GE WAN | 3x GE LAN | 1x FXS VoIP |

  • Overview

    Comtrend’s 5GR-3552 is designed as an indoor 5G NR Wi-Fi 6 Router, with the capability of providing stable and sufficient wireless connectivity via its Dual Band 4T4R + 4T4R 11ax Wi-Fi, delivering input signals from both the 5G NR Sub-6 and 4G LTE on SA & NSA mode.

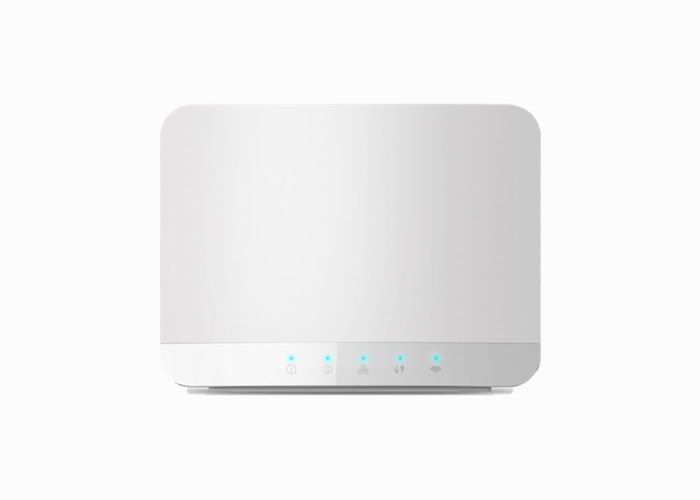

    5GR-3552u 5GR-3552u

    Features

    • 5G NR Sub-6/ 4G LTE: Supports both SA & NSA modes.
    • 3GPP: Full compliance with 3GPP Release 15 on both 5G NR and 4G LTE.
    • Wi-Fi 6 (802.11ax): Dual Band 4T4R 2.4GHz + 4T4R 5GHz.
    • 1x 2.5 Gigabit Ethernet WAN/LAN port: Capable of providing physical connectivity.
    • 3x Gigabit Ethernet LAN port: Capable of providing physical connectivity.
    • OFDMA and MU-MIMO: Supports both up-link and down-link, allows efficient data transmission for more devices at the same time.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

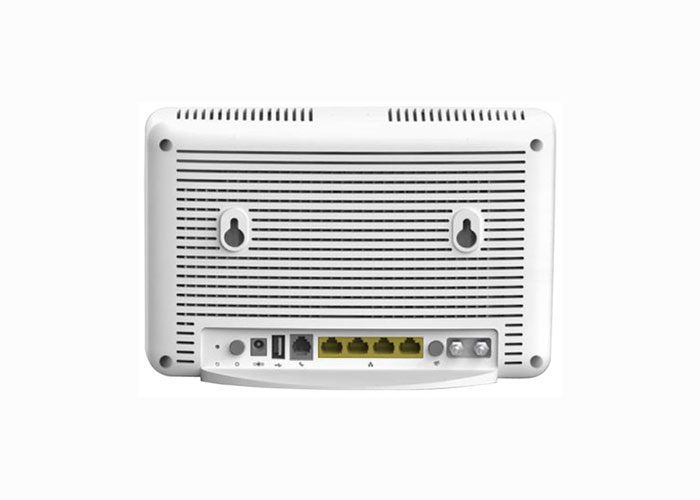

    Interfaces

    • 1x USB-C 3.0 port
    • 1x Nano SIM slot
    • 4x RJ45 for Ethernet :
      Basic configuration: 1x Gigabit Ethernet (WAN/LAN)+ 1x Gigabit Ethernet (LAN)
      Optional:1 x 2.5 Gigabit Ethernet (WAN/LAN) + 3x Gigabit Ethernet (LAN)
    • 1x FXS for VoIP
    • 2x SMA External Antenna (optional)
    • Power On/Off, WPS button, Reset button

    LED Display

    • 1x Power LED; 1x Status LED
    • 1x 4G & 5G network indicator
    • 1x 2.4G/5G Wi-Fi network indicator
    • 1x Voice Service Status (optional)

    5G NR Sub-6

    • Compliant with 3GPP Release 15
    • Maximum Sub-6 Bandwidth: 200MHz
    • Maximum DL speed of LTE+
      Sub6 ENDC: 4.51Gbps
      Sub6 SA: 4.67Gbps
    • Maximum UL speed of LTE+
      Sub6 ENDC: 1.46Gbps
      Sub6 SA: 2.5Gbps
    • FDD Band: n1/3/5/7/8/20/28
    • TDD Band: n38/39/40/41/77/78/79

    4G LTE

    • Compliant with 3GPP Release 15, Cat.19
    • Maximum DL speed 1.4 Gbps DL 5CA
    • Maximum UL speed 200Mbps with 2CA
    • FDD Band: B1/2/3/4/5/18/19/26/7/8/12/17/20/28/32
    • TDD Band: B34/38/39/40/41/42/43

    Wi-Fi

    • Wi-Fi 802.11b/g/n/ax 2.4 GHz Band 4x4
    • Wi-Fi 802.11a/n/ac/ax 5GHz Band 4x4 (80MHz)
    • 1x DFS Ant (optional)
    • EIRP:20dBm @2.4 GHz ; 30 dBm @5 GHz
    • Antenna gain: 3-5dBi @2.4 GHz; 5-6dBi@5 GHz
    • Supports up to 64 client connections
    • EasyMesh R1/R2

    Software Function

    • IPv4/Pv6 dual stack, IPv6 w/464XLAT, NAT (RFC1631)
    • NAPT, DNS Proxy, Port forwarding, VPN Pass-through, DHCP server/client
    • Mobile Web UI management
    • Dual firmware image mechanism via TR-069, LWM2M, or Web UI FOTA upgrade
    • Secure boot
    • LXC container support
    • Companion APP Link
    • BT5.1 support (optional)

    ENVIRONMENT

    Physical & Environmental

    • Power input 12V/4A AC
    • Operating Temp: 0 ~ 40 ºC
    • Humidity 5% ~ 95% RH (non-condensing)
