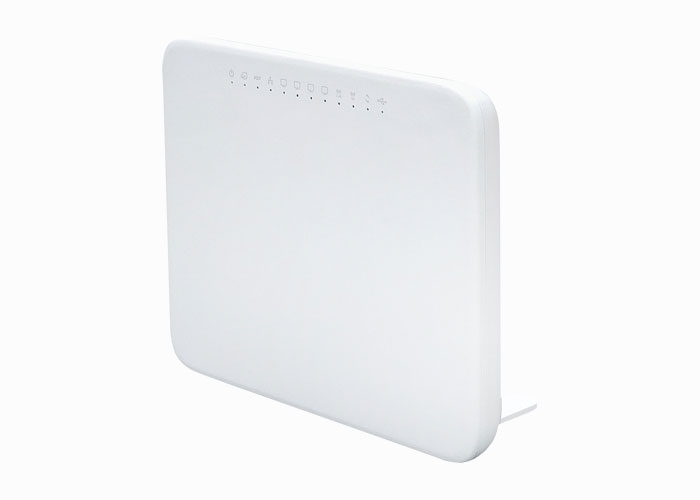

VR-3050eu

xDSL/Eth Gateway AC1200
GE LAN | GE WAN | 2.4G 2T2R + 5G 2T2R | USB 2.0

  • Overview

    The VR-3050eu makes full use of its dual-band Wi-Fi abilities, reaching speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band. Enjoy a total speed of up to 1200Mbps to eliminate buffering from your HD streams and lag from online games. The two wireless bands are separated into two dedicated Wi-Fi networks, supporting more devices while reducing signal interference.

    The core design concept of VR-3050eu is to enhance user experience on high speed applications by providing better coverage and stable Wi-Fi services.

    VR-3050eu VR-3050eu

    Features

    • Satisfies Multiple Needs in one Device: The modem router combines the function of VDSL modem, NAT router, 4-port switch and wireless access point into one fashionable device, providing a one-stop solution for your home network connection
    • Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds: With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections.
    • Maximizes Video Streaming: Equipped with 802.11ac Wave 2 technology, deliver super-charged 2x2 AC1200, MU-MIMO wireless connectivity to enhance video experience.
    • Provides Optimized Performance: Supports the latest G.vector & G.inp technologies to work together to mitigate crosstalk and impulse noise, resulting in greater throughput.
    • Versatile USB Sharing: With the USB 2.0 port, you can share printers, files, and media with various devices on your local network or via FTP server.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    HARDWARE

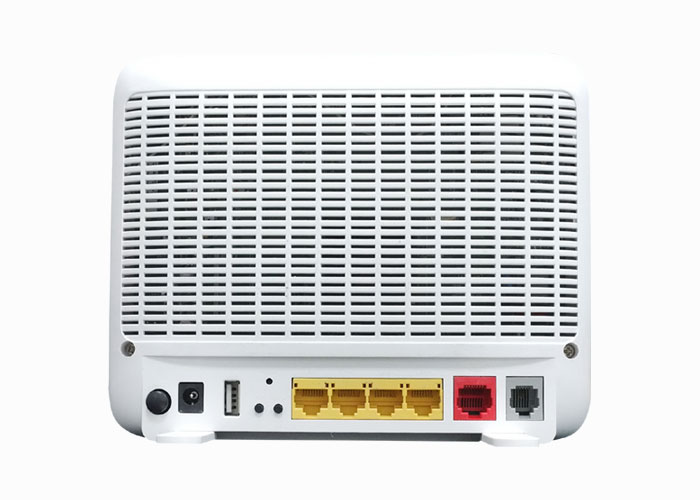

    • Interfaces: 1x 35b VDSL /ADSL2+, 1x Gigabit Ethernet WAN, 4x Gigabit Ethernet LAN, 1x USB 2.0
    • Power Supply: DC 12V 1.5A
    • Memory: 16MB FLASH / 128MB DRAM (embedded)
    • Antenna: 4x internal antennas
    • Dimensions (WxDxH): 186x151x30mm

    General

    • DSL Standards: VDSL2, ADSL2/2+, ADSL (Annex B)
    • Supports VDSL2 8a,8b,8c,8d,12a,12b,17a,35b profile
    • Wireless Standards: IEEE802.11a/n/ac,5GHz, IEEE802.11b/g/n, 2.4GHz
    • Signal Rate:
      5GHz: Up to 876Mbps,
      2.4GHz: Up to 300Mbps
    • Wireless Security: WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

    Software Features

    • WAN Type: ATM/PTM/ETH/Dongle
    • DHCP: Server, Client, DHCP Client List, Address Reservation
    • Quality of Service: WMM, Bandwidth Control
    • Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
    • VPN Pass-Through: PPTP, L2TP, IPSec
    • Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
    • Firewall Security: DoS, SPI Firewall, IP Address Filter / MAC Address Filter / Domain Filter, IP and MAC Address Binding
    • USB Sharing: Support Samba (Storage) / FTP Server, Media Server / Printer Server / DLNA
    • Management: Access Control, Local Management, Remote Management
    • Internet Protocol: IPv4, IPv6

    PACKAGE CONTENTS

    • xDSL/Eth Gateway (VR-3050eu)
    • Power adapter 12VDC/1.5A 100-240VAC, 50/60/Hz

    ENVIRONMENT

    • Operating Temperature: 0°C ~40°C (32°F ~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Relative Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
