GRG-4330
XGS-PON Bridge/Gateway
XGS-PON | 10 Gigabit Ethernet | TR-069
-
Overview

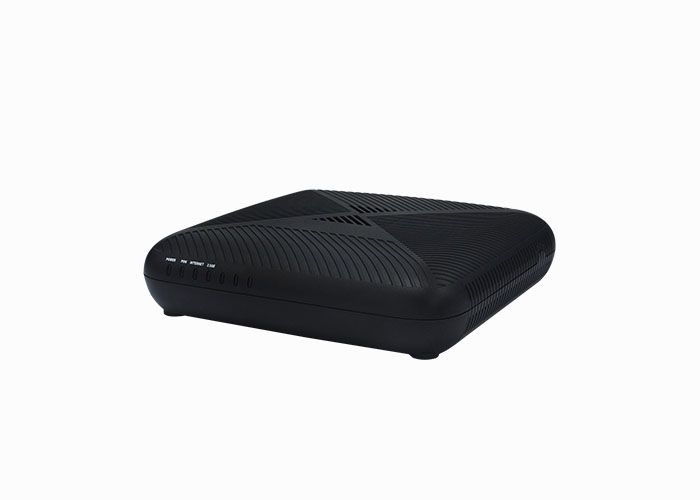

Comtrend's GRG-4330 is designed as an XGS-PON Bridge/Gateway capable of providing a strong and stable internet connection through XGS-PON fiber with one 10Gigabit Ethernet port as LAN to connect with the home wireless unit to provide seamless family internet access services.
The indoor models of Comtrend’s xPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.
Compliant with standard OMCI definition, GRG-4330 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Features
- XGS-PON: Symmetric 10G/10G UL/DL, provides high speed fiber to the home services.
- 10 Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
- Routing Function: Routing software function integrated.
- Easy Remote Management:
- GRG-4330 supports the ONT Management and Control Interface (OMCI), making it easy to configure, activate and manage remotely from an Optical Line Terminal (OLT).
- TR-069 standard data model for ISP remote control.
Specifications
HARDWARE
- Flash : NAND Flash: 128M Bytes
- RAM: DDR3: 256M Bytes
- Interfaces :
1x XGS-PON (SC/APC)
1x 10-Gigabit Ethernet LAN - LED Indicators : POWER, PON, 10GE, INTERNET
- Buttons : Reset button
- Power Input : 12DVC/1.0A
- Dimensions : 156 x 156 x 41.5mm (WxDxH)
REMOTE MANAGEMENT
- Protocol :
TR-069, HTTP, HTTPS, TELNET, SSH
CETIFICATIONS
- CE, RoHS
PACKAGE CONTENTS
- XGS-PON VoIP Gateway (GRG-4330)
- Power adapter 12DVC/1.0A, 100-240ACV, 50/60Hz, 1.5m
- RJ-45 Giga Ethernet cable (8P8C, 1.5m)
ENVIRONMENT
- Temperature:
Operating: 0°C~40°C (32°F~104°F)
Storage: -40°C~70°C (-40°F~158°F) - Humidity (Non-condensing):
Operating: 10%~90% RH, non-condensing
Storage: 5%~95% RH, non-condensing
