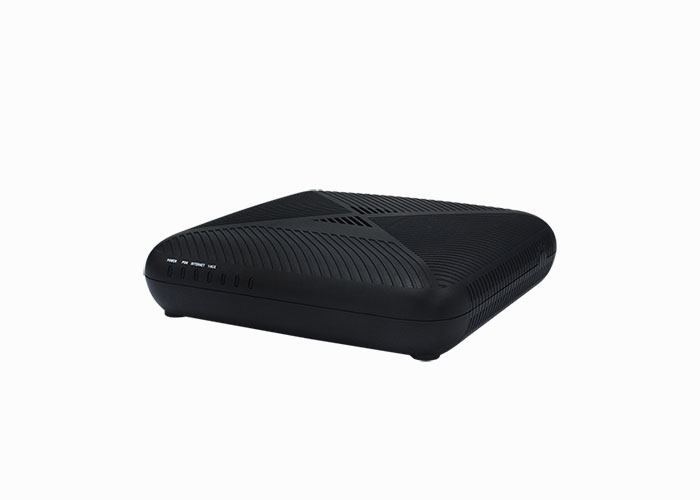

GRG-4333

XGS-PON Bridge/Gateway (2.5 GE)
XGS-PON | 2.5 Gigabit Ethernet | TR-069

  • Overview

    Comtrend's GRG-4333 is designed as an XGS-PON Bridge/Gateway capable of providing a strong and stable internet connection through XGS-PON fiber with one 2.5 Gigabit Ethernet port as LAN to connect with the wireless unit to provide seamless family internet access services.

    The indoor models of Comtrend’s xPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.

    Compliant with standard OMCI definition, GRG-4333 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

    GRG-4333

    Features

    • XGS-PON: Symmetric 10G/10G UL/DL, provides high speed fiber to the home services.
    • 2.5 Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
    • Routing Function: Routing software function integrated.
    • Easy Remote Management:
      - GRG-4333 supports the ONT Management and Control Interface (OMCI), making it easy to configure, activate and manage remotely from an Optical Line Terminal (OLT).
      - TR-069 standard data model for ISP remote control.

    Specifications

    HARDWARE

    • Flash : NAND Flash: 128M Bytes
    • RAM: DDR3: 256M Bytes
    • Interfaces :
      1x XGS-PON (SC/APC)
      1x 2.5 Gigabit Ethernet LAN
    • LED Indicators : POWER, PON, 2.5GE, INTERNET
    • Buttons : Reset button
    • Power Input : 12DVC/1.0A
    • Dimensions : 156 x 156 x 41.5mm (WxDxH)

    REMOTE MANAGEMENT

    • Protocol :
      TR-069, HTTP, HTTPS, TELNET, SSH

    CETIFICATIONS

    • CE, RoHS

    PACKAGE CONTENTS

    • XGS-PON Bridge/Gateway (GRG-4333)
    • Power adapter 12DVC/1.0A, 100-240ACV, 50/60Hz, 1.5m
    • RJ-45 Giga Ethernet cable (8P8C, 1.5m)

    ENVIRONMENT

    • Temperature:
      Operating: 0°C~40°C (32°F~104°F)
      Storage: -40°C~70°C (-40°F~158°F)
    • Humidity (Non-condensing):
      Operating: 10%~90% RH, non-condensing
      Storage: 5%~95% RH, non-condensing

    Resources

    Product Sheet

    DS_GRG-4333_V3.3.pdf
