GRG-4284

GPON ONT
GPON | 1x Gigabit Ethernet | TR-069

  • Overview

    GRG-4284 is a next-generation Gigabit Passive Optical Network (GPON) ONT, ideal for Fiber to The Home solution designed for advanced triple-play deployments. It’s an incredibly robust device allowing users to access a high-speed internet connection via its GPON port and share it with a Gigabit Ethernet port.

    The indoor models of Comtrend’s GPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.

    Compliant with standard OMCI definition, GRG-4284 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

    GRG-4284 GRG-4284

    Features

    • Access to Fiber Optical Network: Supports downstream 2.5Gbps and upstream to 1.25Gbps with a transmission distance of up to 20km.
    • Easy Remote Management:
      - GRG-4284 supports the ONT Management and Control Interface (OMCI), making it easy to configure, activate and manage remotely from an Optical Line Terminal (OLT).
      - TR-069 standard data model for ISP remote control.

    Specifications

    HARDWARE

    • Flash : NOR Flash : 16M Bytes
    • RAM: DDR: 64M Bytes

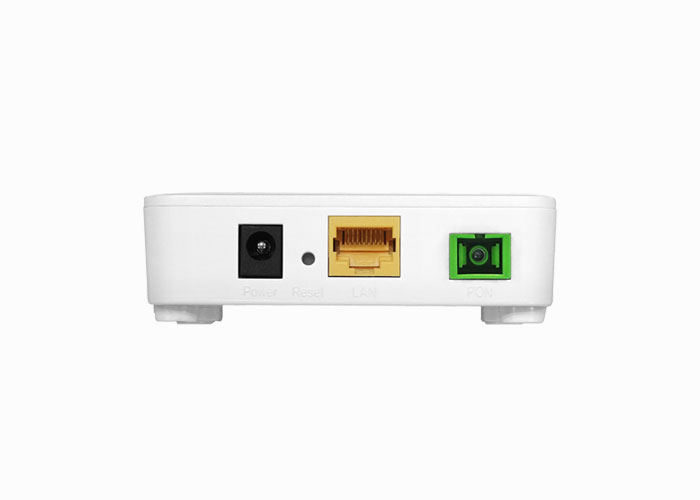

    • Interfaces : GPON (SC/APC) x1, Gigabit Ethernet LAN x 1
    • LED Indicators : Power, LOS, PON, LAN
    • Buttons : Reset button
    • Power Input : 12DVC/0.5A

    SOFTWARE

    • Quality of Service : WMM, Bandwidth Control
    • Port Forwarding : L2/L3 forwarding, L3 NAPT
    • VPN : 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
    • Access Control : Local Management Control, Host List, Access Schedule, Rule Management
    • Firewall Security : DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
    • Management : Access Control, Local Management, Remote Management

    REMOTE MANAGEMENT

    • Protocol :
      OMCI, HTTP, HTTPS, TELNET, SSH

    CETIFICATIONS

    • CE, RoHS

    PACKAGE CONTENTS

    • GPON ONT (GRG-4284)
    • Power adapter 12VDC/0.5A, 100-240VAC, 50/60Hz, 1.5m

    ENVIRONMENT

    • Temperature:
      Operating: 0°C~40°C (32°F~104°F)
      Storage: -40°C~70°C (-40°F~158°F)
    • Humidity (Non-condensing):
      Operating: 10%~90% RH, non-condensing
      Storage: 5%~95% RH, non-condensing

    Resources

    Product Sheet

    DS_GRG-4284_V3.4.pdf
