PG-9086

G.hn Wave2 Powerline IoT AC1200
Powerline Ethernet Wi-Fi Adapter
G.hn | 100MHz MIMO | 2x GE LAN | ON/OFF Switch | APP IoT 802.11ac | Concurrent DB 2T2R

  • Overview

    The PowerGrid 9086, ITU-T G.hn networking standard compliant ethernet adapter is designed to meet the growing demand for perfect connectivity and coverage across multiple devices connected concurrently throughout the home. The G.hn Powerline Wi-Fi Extender wall plug allows users to take Wi-Fi anywhere throughout the home for simultaneous Internet/video streaming and IoT device use.

    The PowerGrid 9086 supports an on/off switch of the AC socket using a button or APP. Also, combining the concurrent dual band Wi-Fi radios, driving the G.hn Powerline Wi-Fi Extenders enable them to leverage both the 2.4GHz and 5GHz bands to deliver a seamless wireless experience anywhere in the home. Smart Wi-Fi technology Airtime fairness/QoS will also enable the virtualization of Wi-Fi resources, so that Wi-Fi capacity can be dynamically apportioned and provisioned to different devices, services and Smart IoT applications.

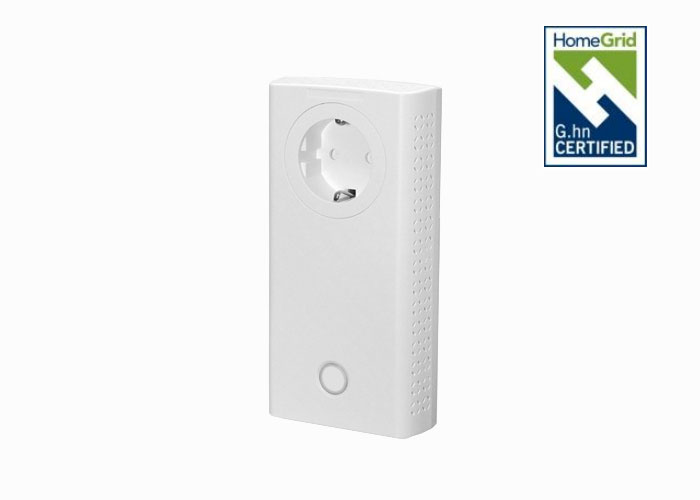

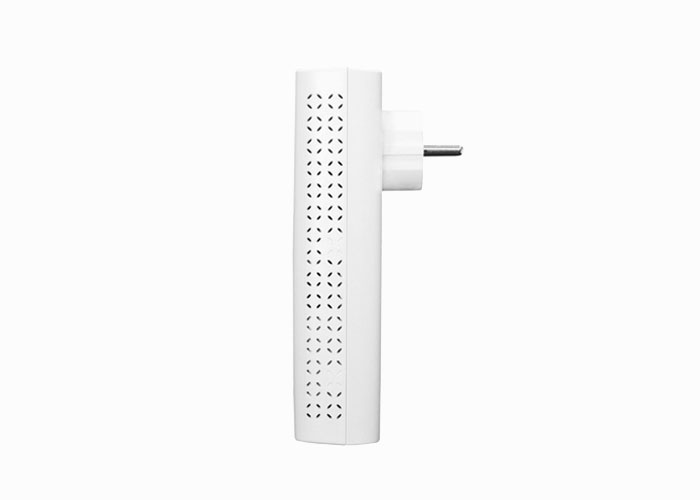

    PG-9086 PG-9086

    Features

    • G.hn MIMO Performance: ITU-T G.hn baseband plans 100 MHz MIMO techniques boosting PLC throughput up to 1.2Gbps PHY rate over powerline.
    • Concurrent Dual Band WiFi5 11ac: Utilizing concurrent dual band 2T2R Wi-Fi interfaces leverage both the 2.4GHz and 5GHz bands.
    • Seamless Load balance: Powered by band-steering technology, the G.hn Powerline Extender seamlessly balances devices amongst the dual Wi-Fi bands.
    • Smart Wi-Fi Technology: Airtime fairness/QoS ensures the higher capacity for a distributed home network with multiple nodes.
    • ON/OFF switch for IoT: In addition to Access Point for IoT devices, an ON/OFF switch of AC socket is also supported.
    • APP for IoT & Powerline Wi-Fi Diagnose: Supports APP for IoT and powerline/Wi-Fi diagnose for rapid self-installation.
    • Amazon/Google Smart Voice: It is capable of managing the smart home through Amazon Alexa or Google home.
    • Remote Management: TR-069 standard data model for ISP remote control.

    Specifications

    Interfaces

    • 2x Gigabit Ethernet LAN
    • LED Indicators:, G.hn, 2.4GHz, 5.0GHz, PWR, switch on/off
    • Buttons: G.hn pairing, WiFi ON/OFF, RESET
    • 2x Internal Wi-Fi DB Antenna
    • On/off switch of AC socket

    G.hn (PLC)

    • ITU-T G.9960 & G.9961 compliant
    • G.hn 100MHz MIMO
    • NDIM support

    WLAN (WiFi)

    • 802.11 b/g/n, 2412 ~ 2484 MHz, BW 20/40M
    • 802.11 a/n/ac, 5180 ~ 5825 MHz , Wave-2 compatible with MU-MIMO, BW 20/40/80
    • Concurrent 2.4GHz & 5GHz. 2T2R
    • Compliance DFS @5GHz

    Management

    • HTTP Web-based
    • Single TR-069 entity for G.hn & Wi-Fi functions
    • TR-069 over IPv4/v6 dual stack
    • APP

    Security

    • G.hn AES 128 bits encryption ensures total data security

    Networking Protocols

    • 802.1D Ethernet Bridge
    • 802.1Q VLAN
    • Quality of Service (QoS)
    • IGMP(IPv4) Snooping & MLD(IPv6) Snooping

    Power

    • Input : 100-240Vac, 50/60Hz, 16A
    • Output : 100-240Vac, 50/60Hz, 16A

    Dimensions

    • 164.2 mm X 82 mm X 37.7 mm (not including AC/DC PSU)

    Certifications

    • CE, VDE02620, ITU-T G.hn Standard

    ENVIRONMENT

    • Operating temperature: 0 ~ 40 degrees Celsius
    • Relative humidity: 8 ~ 95% (non-condensing)
