MDU-4640

G.hn over Coax Head End 1 port
G.hn Coax MDU
G.hn wave2 over coaxial | SFP GPON/GE Uplink | GE LAN

- Overview
- Features
- Specifications
- Resources
- Inquiry
Overview

The Comtrend MDU-4640 is a revolutionary G.hn wave2 over coaxial cable Head End with a flexible SFP/1GBase-T Ethernet uplink hybrid approach providing the broadband service under the current coaxial cable network to the cable TV subscriber.

Combining the coaxial cable and broadband technologies, the MDU-4640 includes an SFP cage for versatile uplink interfaces (such as for 1G AE/ 2.5G AE/ GPON ONU MAC/ 1000Base-T SFP module), or with the built-in Gigabit Ethernet Port (RJ-45) to the GPON ONU. The point-to-multipoint network allows one MDU-4640 connect to 16 G.hn over coaxial wave2 CPEs and provides up to 1.7Gbps bandwidth. In addition, the Cable TV service will still work well (co-existing with the G.hn broadband data network).

Features
- G.hn wave2 over coaxial cable technology
- One MDU-4640 connects to 16 units G.hn over coaxial wave2 CPEs thru a single coaxial cable
- Auto configuration
- Max. 1.7Gbps Aggregated Broadband service
- Web GUI for friendly and easy operation network management
- Supports TR-069 for remote network management
- Value added Broadband service over current CATV network
- Uplink interface complies with GPON/ 1G AE/ 1GBase-T
Specifications
HARDWARE

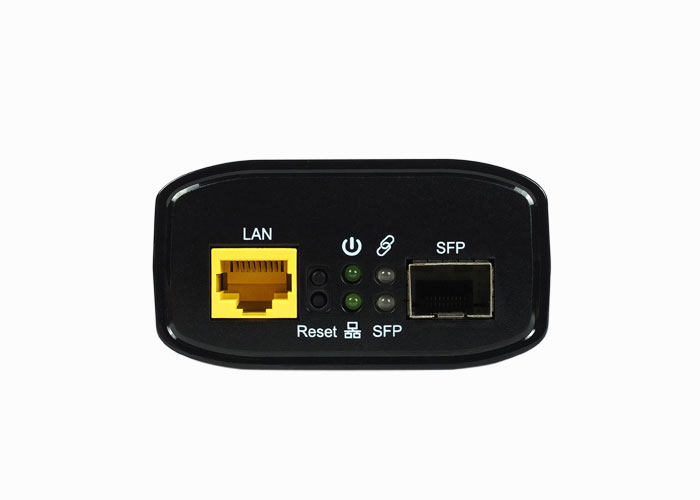

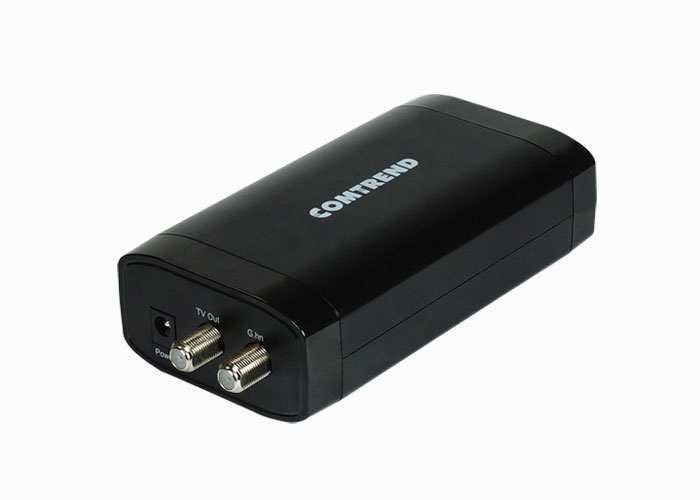

- Ports
  1x Port F-connector (G.hn + CATV Output/Input),
  1x Port F-Connector (CATV Input/Output)
  1x Gigabit Ethernet LAN
  1x SFP
- LED Indicators
  Power, LAN, (G.hn) Link, SFP
- Power Input
  DC 12V/1A
- Dimensions
  133mm (D) x 70mm (W) x 38mm (H)
UPLINK (MDU-4640)
- SFP module (Optional)
  GPON ONU MAC, 1G AE, 1GBase-T (RJ-45)
- Gigabit Ethernet (RJ-45)
  Built-in
G.HN WAVE2 MASTER
- Standards
  Supports ITU-T G.9960/9961/9962/9963/9964 Unified high-speed wireline-based home networking transceivers
CABLE TV
- Spectrum
  250MHz to 1200MHz
ENVIRONMENT
- Operating Temperature:
  0°C ~ 40°C (32°F ~ 104°F)
- Operating Humidity:
  10% ~ 90% non-condensing
SOFTWARE

Features
- Supports Up Stream/Down Stream bandwidth configuration
- Supports DHCP client, Fixed IP setting, Ipv6 passthrough, C-TAG VLAN, Management VLAN, Syslog, SNTP client, Multicasting
- Supports Web GUI as friendly management Interface
- TR-069 for remote management
- Certifications
  CE, FCC, UL / cUL, ITU-T G.hn Standard
Resources

Product Sheet
DS_MDU-4640_V3.3.pdf
