GCA-6014 & GCA-6014PoE

DVB-T/S and FWA Extension over Coax
G.hn Wave 2 over Coaxial | 2500Base-T | PoC | PoE+ | Triplexer

  • Overview

    Comtrend’s GCA-6014 & GCA-6014PoE are designed for 5G NR/4G LTE extension from outdoor to the end user’s home for sharing the coaxial cable with DVB-S/DVB-T, and to solve the 5G NR/4G LTE installation without local electricity issue. The GCA-6014 is an indoor device that offers sufficient power over the coaxial cable to the GCA-6014PoE at the outdoor site. The GCA-6014PoE is an outdoor transfer station with 802.3at (30 watts) PoE to power the 5G NR/4G LTE and transfer the broadband data network to indoors. The GCA-6014 and GCA-6014PoE also transfer the DVB-S 13/18V Voltage between the STB and LNB without any impact to the video service.

    Higher Cost Efficiency and Easy Installation
    Using GCA-6014 and GCA-6014PoE reduces the extra cable installation expense and saves time for the end user to utilize the over gigabit broadband service. The GCA-6014PoE is IP55 designed to be more waterproof and dustproof to secure the service quality.

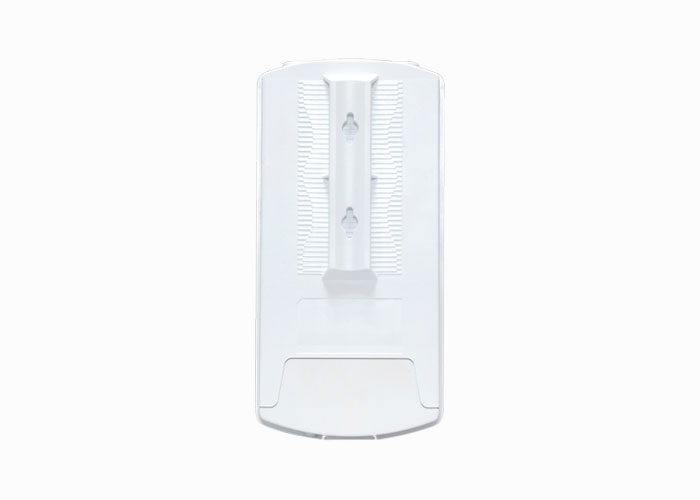

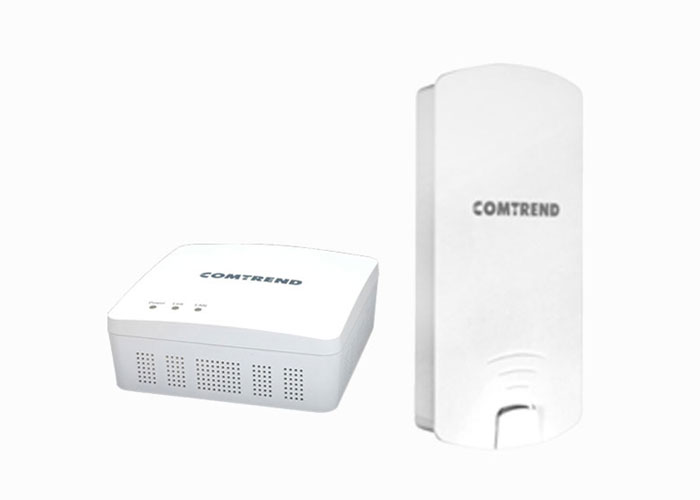

    GCA-6014 & GCA-6014PoE GCA-6014 GCA-6014 GCA-6014PoE GCA-6014PoE

    Features

    • Connects outdoor 5G NR/4G LTE LAN Port to the house without new cable installation
    • Supports 2.5Gigabit LAN ports provide high-speed connectivity
    • Co-exist with DVB-S/DVB-T over the single coaxial cable and compatible with DiSEqC 1.x/2.x Standards
    • PoC (Power over Coaxial) for outdoor devices powering over 50 meters (164 feet)
    • Supports IEEE 802.3at (30W) and 802.3af (15W) Power over Ethernet (PoE) standards
    • Easy plug-and-play

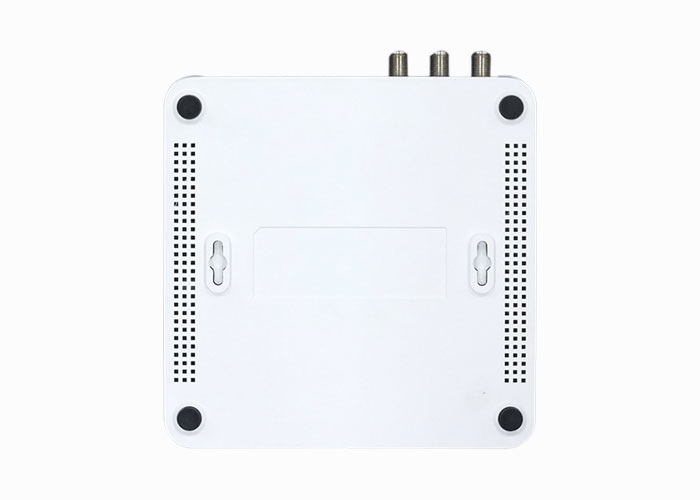

      - Desktop or wall-mounted installation (GCA-6014)
      - IP55 grade dustproof & waterproof for outdoor installation (GCA-6014PoE)
    • Remote Management: TR-069 standard data model for ISP remote control

    Specifications

    HARDWARE

    • Ports

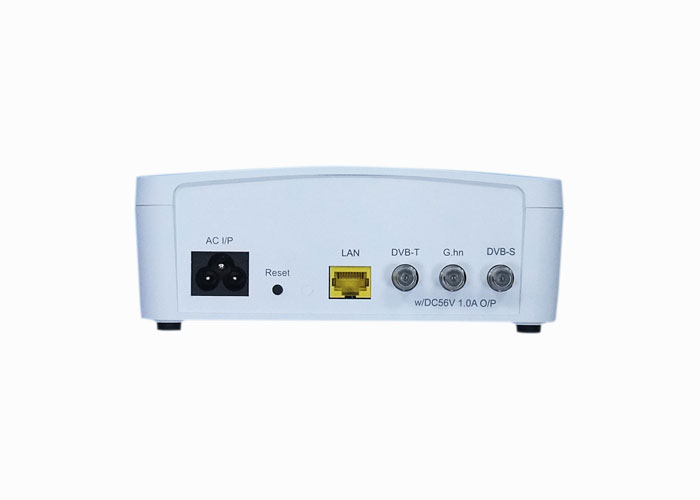

      1 x RJ-45 2500Base-T, 3 Port F-connector (GCA-6014)

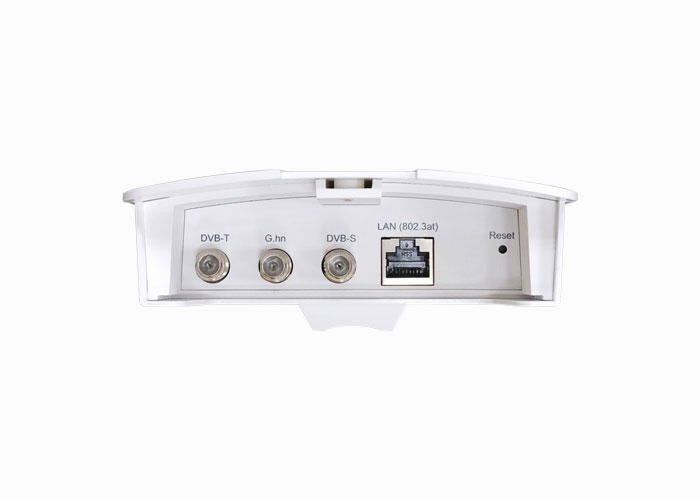

      1x RJ-45 2500Base-T PoE Port, 3 Port F-connector (GCA-6014PoE)
    • LED Indicators
      Power, (G.hn) Link, LAN (GCA-6014 & GCA-6014PoE)
    • Power Input
      100-240V AC, 50-60 Hz (GCA-6014)
    • Dimensions (L x W x H)
      165 × 165 × 60 mm (GCA-6014), 245 x 120 x 45 mm (GCA-6014PoE)

    POWER OVER ETHERNET (GCA-6014PoE)

    • Standards
      IEEE 802.3af, IEEE 802.3at
    • Power Output
      DC53V/0.55A

    TRIPLEXER SPECTRUM

    • DVB-S/ DVB-T/ G.hn
      950MHz ~ 2150MHz / 174MHz ~ 790MHz / 5MHz ~ 150MHz

    ENVIRONMENT

    • Operating Temperature
      GCA-6014 Operating: 0°C ~ 40°C (32°F ~ 104°F)
      GCA-6014PoE Operating: -10°C ~ 55°C (14°F ~ 131°F)
    • Storage Temperature
      -40°C ~ 70°C (-40°F ~ 158°F)
    • Humidity
      Operating: 10 ~ 90% RH, non-condensing / Storage: 5 ~ 90% RH, non-condensing

    STANDARDS COMPLIANCE

    • Standards
      IEEE 802.3u 100BaseTX Fast Ethernet / IEEE 802.3ab 1000BaseT Gigabit
      Ethernet / IEEE 802.3bz 2500BaseT 2.5Gigabit Ethernet
      IEEE 802.3af Power Over Ethernet (PoE) / IEEE 802.3at Power Over Ethernet Plus (PoE+)
      ITU-T G.9960/9961/9962/9963/9964 Unified high-speed wireline-based home networking transceivers
