VDSL Wireless Router

  • 產品概述


    4 Ethernet Ports | 1 USB Host | 802.11n

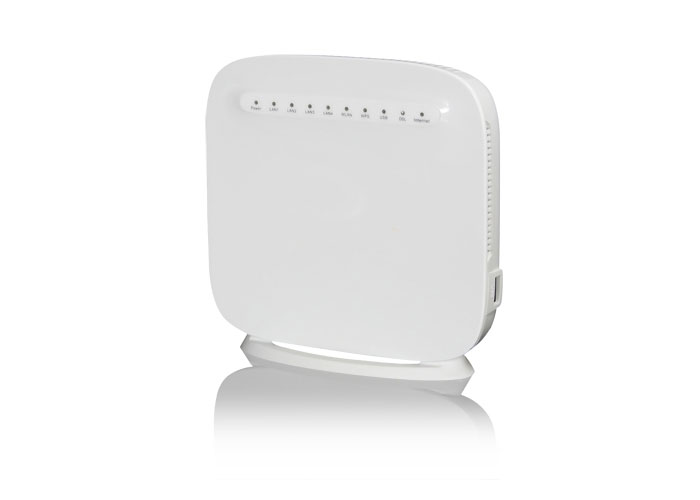

    The VR-3041u is an 802.11n compliant Multi-DSL router that supports both ADSL2+ and VDSL2. VDSL2 is a brand new standard and technology perfect for triple play (Video, Voice and Data) applications. The VR-3041u comes with four 10/100 Base-T Ethernet ports, and one USB host, combining wired LAN connectivity and an integrated 802.11n WiFi WLAN Access Point (AP) for wireless connectivity.

    The VR-3041u is a cost effective solution designed to meet the needs of ISPs and carriers planning on deploying a single DSL device for covering end users in different loop range areas. Deploying VR-3041u is cost effective for ISPs and carriers because deploying a single CPE DSL device with multiple profile support minimizes the number of required upgrades.

    VR-3041u VR-3041u VR-3041u



    • Annex A, UPnP, IPv6 compliant
    • Automatically switches to ADSL2+/ VDSL2 according to the port setting of DSLAM
    • Supports up to VDSL2 30a Profile
    • PhyR and G.INP
    • G.vector
    • Up to 10 PVCs
    • Up to 8 PTM flows
    • Supports TR-069/TR-098/TR-111
    • Configuration backup and restoration
    • Supports TR-064
    • Web-based management (HTTPS/HTTP)
    • Supports remote administration, automatic firmware upgrade and configuration
    • Integrated 802.11n AP (backward compatible with 802.11b/g)
    • WPA and 802.1x/ WPS 2.0/ RADIUS client
    • NAT/PAT
    • Supports SP/WFQ/WRR for QoS
    • Per-PVC packet level QoS
    • IGMP Proxy/ fast leave/ Snooping/ Proxy
    • DHCP Server/Client
    • Embedded SNMP agent
    • IP/MAC address filtering
    • Static route/ RIP/ RIP v2 routing function
    • DNS Proxy/Relay
    • 3G Backup/ Printer Server (IPP)/ File sharing
    • FTP/TFTP server




    • Chipset : MT7510

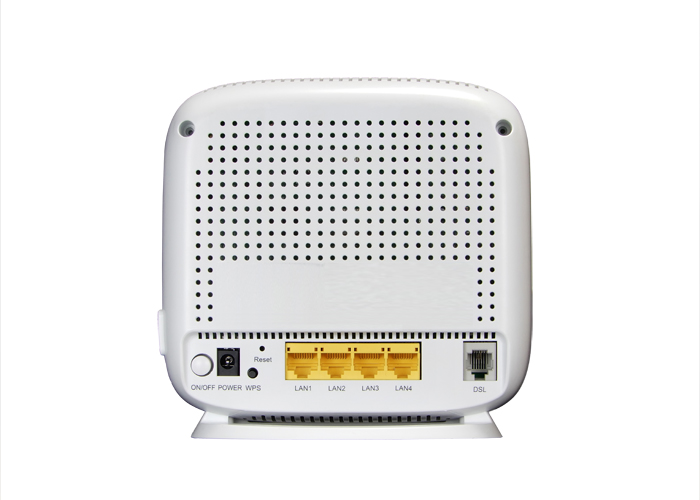

    • RJ-11 X 1 for ADSL2+/VDSL2
    • RJ-45 X 4 for LAN, (10/100 BaseT)
    • Reset button X 1
    • WPS /WiFi on/off button X 1
    • Power switch X 1

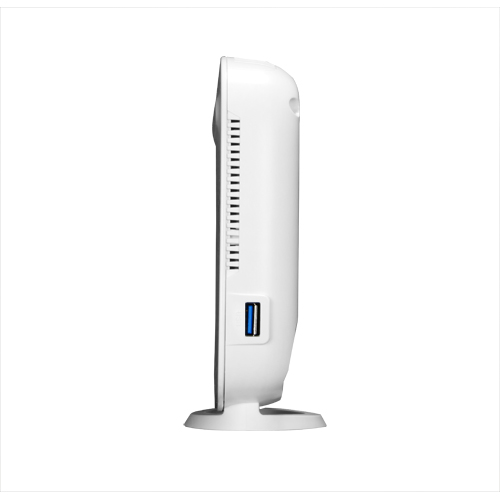

    • USB host X 1


    • Comply with ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ANSI T1.413 Issue 2, AnnexM
    • ADSL2+: Downstream : 24 Mbps Upstream : 1.3 Mbps
    • Comply with G.993.2 (supporting profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a)
    • VDSL2 : Downstream : 100Mbps Upstream : 60Mbps


    • IEEE 802.3, IEEE 802.3u
    • Support MDI/MDI-X
    • 10/100 BaseT Auto-sense


    • IEEE802.11b/g/n
    • 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
    • 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
    • Up to 300Mbps data rate
    • MAC address filtering, WEP, WPA, IEEE 802.1x
    • 10,25,50,100mW@22MHz channel bandwidth output power level can be selected according to the environment

    ATM Attributes

    • RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE); RFC 1577 (IPoA)
    • Support up to 10 PVCs
    • AAL5
    • UNI 3.1/4.0
    • OAM F4/F5

    PTM Attributes

    • ATM Adaptation Layer: Ethernet packet format,
    • Support 8 flows,
    • Support preemption and dual latency,


    • TR-069/TR-098/TR-104/TR-111, SNMP, Telnet, Web-based management, Configuration backup and restoration
    • Software upgrade via HTTP, TFTP server, or FTP server

    Bridge Functions

    • Transparent bridging and learning: IEEE 802.1d
    • VLAN support
    • Spanning Tree Algorithm
    • IGMP Proxy

    Routing Functions

    • Static route, RIP, and RIPv2, NAT/PAT, DHCP Server/ DHCP Relay, DNS Proxy, ARP

    Security Functions

    • Authentication protocols: PAP, CHAP
    • TCP/IP/Port filtering rules, Port triggering/Forwarding, Packet and MAC address filtering, access control, SSH


    • L3 policy-based QoS, IP QoS, ToS

    Application Passthrough

    • PPTP, L2TP, IPSec, SIP, Yahoo messenger, ICQ, RealPlayer, NetMeeting, MSN, X-box, etc.

    Power Supply

    • Input: AC 100-240V, Output: DC 12V/ 1.0A

    Environment Condition

    • Operating temperature: 0 ~ 40 degrees Celsius
    • Relative humidity: 5 ~ 95% (non-condensing)


    • 94 (W)*150 (H)*35 (D)mm

    Kit Weight

    • 230g
