VoIP Gateway

  • 產品概述


    802.11n 2.4GHz | 4 Gigabit Ethernet Port

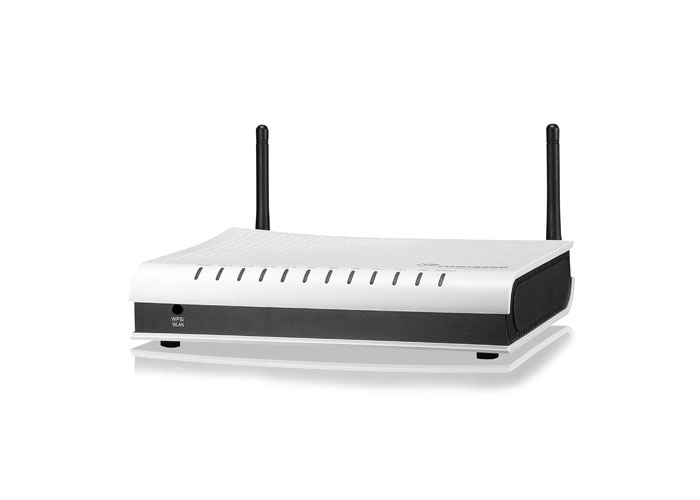

    The VG-8054u is an 802.11n 2.4GHz concurrently compliant VoIP Gateway. It employs a 10/100/1000 Base-T Gigabit Ethernet port for WAN, four 10/100/1000 Base-T Gigabit Ethernet ports for LAN, two FXS ports, two USB Host, one WiFi On-Off/WPS button, and an integrated 802.11n 2.4GHz(2T2R) for WLAN Access Point (AP), which is backward compatible with 802.11b/g; therefore VG-8054u allows both wired LAN connectivity and wireless connectivity. It is also capable of facilitating predictable, real-time, toll-quality voice over the Internet.

    VG-8054u connects to ADSL or GPON (Gigabit-Capable Passive Optical Network) modem for providing VoIP services. It supports state-of-the-art security features such as WPA data encryption, Firewall & VPN pass through and is designed for both residential and business applications that require wireless and wired connectivity. VG-8054u is also designed with TR-068 compliant color panel and LED indicators for easy installation and user-friendliness. VG-8054u will be one of their important gateway supporting Triple services (Data+VoIP+IPTV) by wired or wireless protocol.

    VG-8054u VG-8054u



    • UPnP
    • Integrated 802.11n 2.4GHz AP (Backward compatible with 802.11g/b)
    • WPA/WPA2 and 802.1x
    • WMM
    • RADIUS client
    • IP filtering
    • Static route routing functions
    • Dynamic IP assignment
    • Parental Control
    • IGMP Proxy
    • DHCP Server/Client/Relay
    • DNS Relay
    • Embedded SNMP agent
    • Supports remote administration
    • Configuration backup and restoration
    • FTP/TFTP server
    • Supports QoS (Quality of Service) for voice
    • Supports caller ID display and restriction
    • Supports call hold, call waiting, call forwarding, call transfer, 3-way conference
    • Supports Direct number dialing
    • Supports T.38/ TR-069/ TR-98/ TR-111

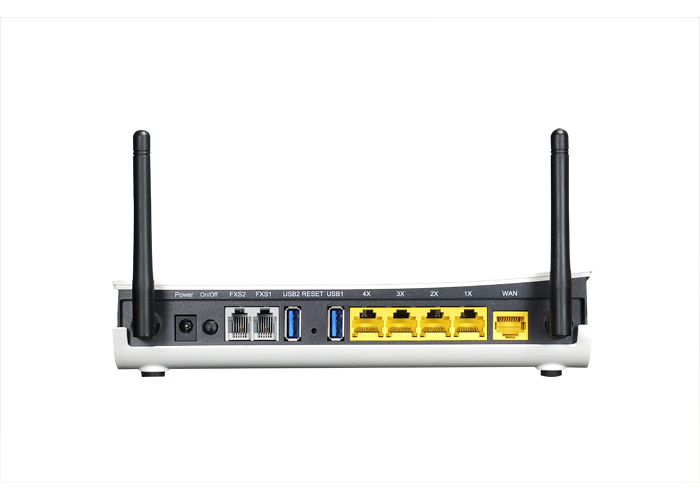

    Hardware Interface

    • RJ-45 X 1 for WAN (Giga Ethernet)
    • RJ-45 X 4 for LAN (Giga Ethernet)
    • Reset button X 1
    • Power switch X 1
    • 11n 2.4GHz WiFi On-Off/WPS button X 1
    • Dual Band Wi-Fi external Antenna X 2
    • USB Host X 2
    • FXS X 2


    • IEEE 802.3, IEEE 802.3u
    • 10/100/1000 BaseT auto-sense
    • MDI/MDI-X support


    • IEEE802.11n 2.4GHz, backward compatible with 802.11g/b
    • 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
    • 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
    • Up to 300Mbps at 2.4GHz data rate
    • 20MHz/40MHz bandwidth
    • WPA/WPA2
    • IEEE 802.1X
    • Tx Beamforming
    • WMM


    • SNMP, Telnet, Web-based management, Configuration backup and restoration.
    • Software upgrade via HTTP, TFTP server, or FTP server

    Routing Functions

    • PPPoE, IPoA, Static route, NAT/PAT, DHCP Server/Client, DHCP Relay, DNS Relay, ARP

    Security Functions

    • PAP, CHAP, Port triggering/Forwarding, Packet filtering, Access control, SSH

    Voice Functions

    • SIP: RFC 3261
    • MGCP: RFC 3435
    • Codec: G.711, G.723.1, G.726, G.729ab
    • RTP: RFC 1889
    • SDP: RFC 2327
    • Caller ID: ETSI based
    • Life line/ Emergency call
    • Echo cancellation: G.168
    • Silence suppression

    Application Passthrough

    • PPTP, L2TP, IPSec, VoIP, Yahoo messenger, ICQ, RealPlayer, NetMeeting, MSN, X-box, etc.


    • External power adapter:
      Input: AC100-240V, Output: DC12V/2.0A

    Environment Condition

    • Operating temperature: 0 ~ 55 degrees Celsius
    • Relative humidity: 5 ~ 95% (non-condensing)


    • 160mm(W) x 46mm(H) x 206mm(D)

    Kit Weight

    • (1*VG-8054u, 2*RJ45 cable, 1*RJ-11 cable, 1*power adapter)
